As part of our expanding Toyota product range, AIRTEC Motorsport are proud to launch our Yaris GR Gen 2 uprated automatic gearbox oil cooler suitable for track or fast road use.
Whilst the Gen 1 Yaris GR did not feature radiators or coolers behind the bumper, AIRTEC Motorsport created a pair fitted behind the bumper to help cooling and proved effective, so it was no surprise that the new and improved Gen 2 Yaris GR came fitted with an auxiliary radiator and gearbox cooler for the automatic version (not manual) already located behind the bumper.
That gave us a head start to create a direct replacement oil cooler that was larger in capacity to help cooling. As a result, the increased core size radiator is taller, wider and deeper, which means capacity is increased by 172% compared to standard, whilst frontal area is also increased by 45% to help cool the extra capacity.
To ensure its effectiveness, the comprehensive package also features a front guide to direct fresh air into the oil cooler as well as a rear duct to ensure flow out.

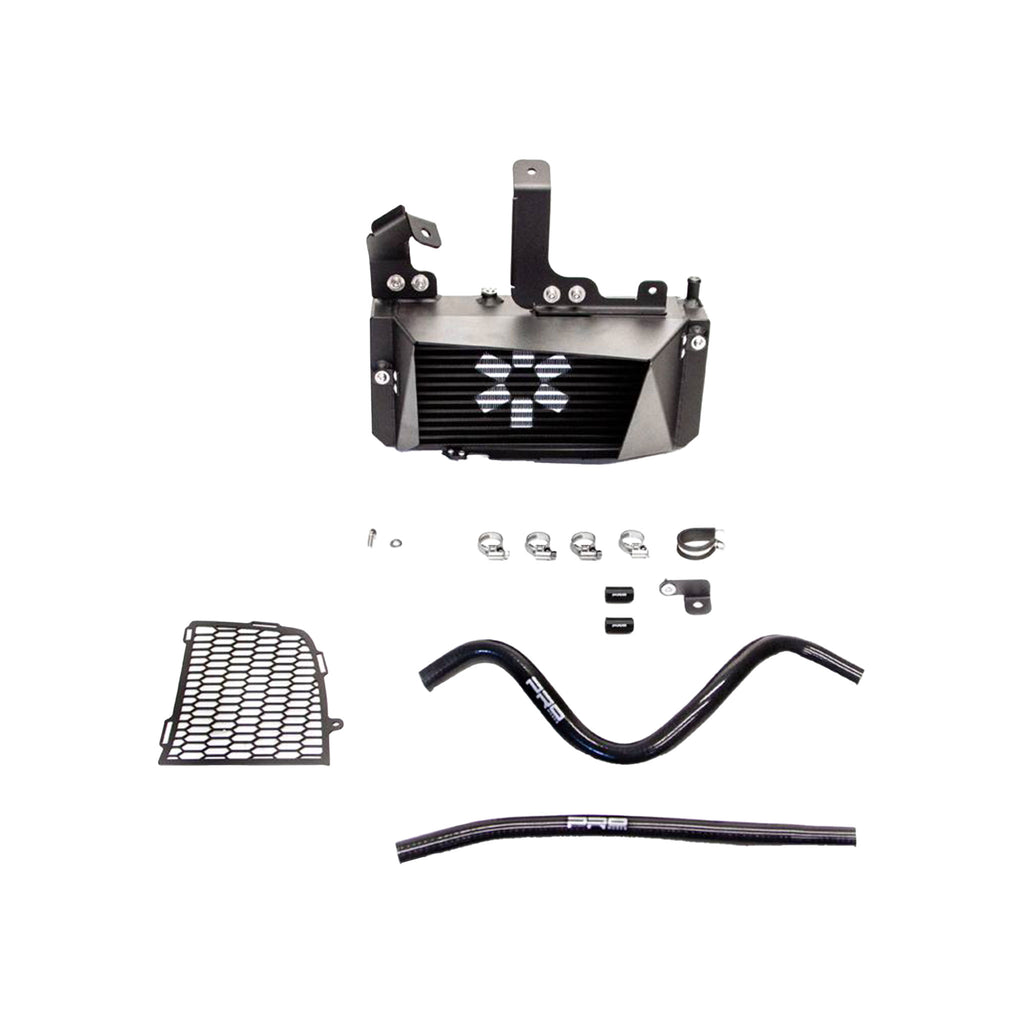

Finished in a high-quality black powder coat, the kit requires no trimming or cutting and can be reverted back to standard. The fitting kit includes all lines and fittings, as well as all fixtures required to fit, including a detailed installation guide.

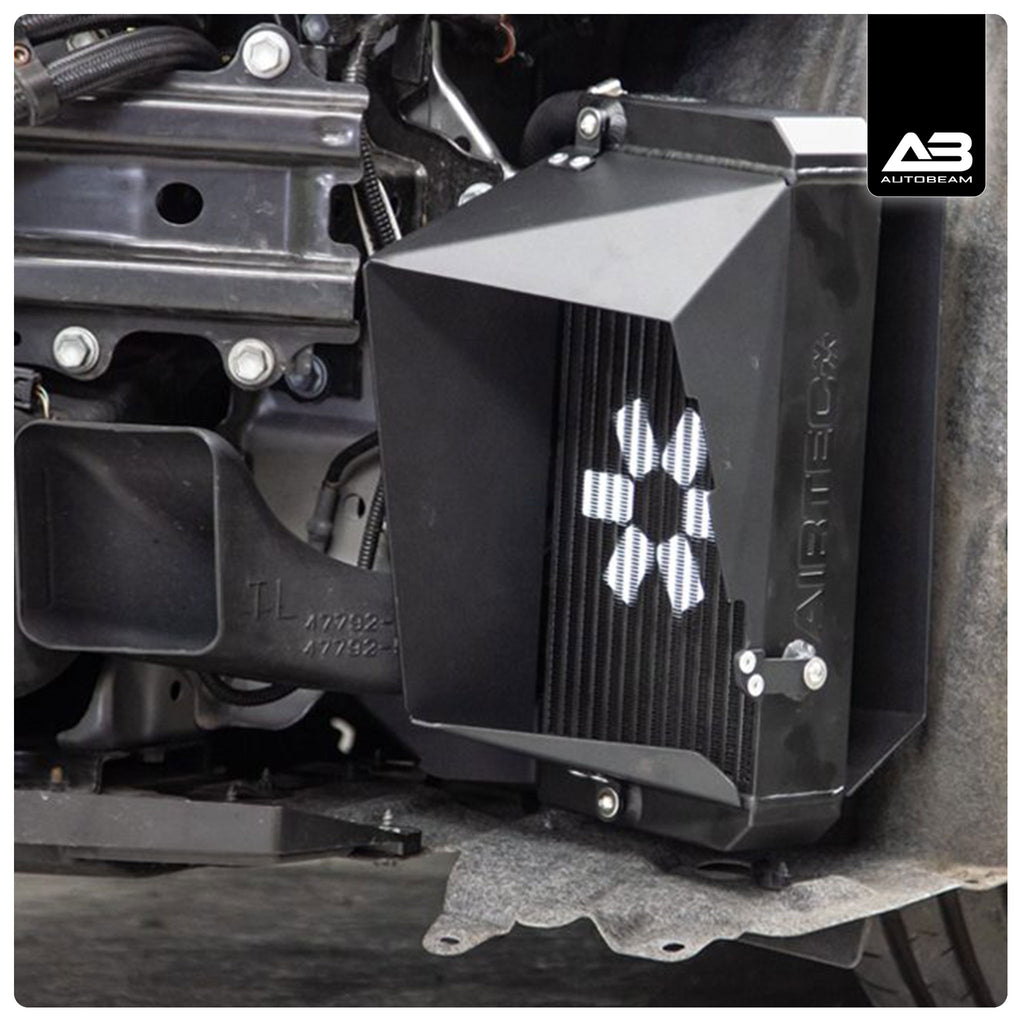

Despite the significant improvements, the oil cooler fits neatly behind the bumper and requires no modifications to fit and comes complete with new mounting bracket and oil lines.
Finished in a high-quality powder-coated black finish, the comprehensive fitting kit includes a detailed instruction fitting guide.
- Comprehensive kit designed specifically for the Yaris GR Gen 2 Automatic
- 172% larger core compared to standard cooler
- 45% increase in frontal area compared to standard cooler
- Front guide to direct fresh air into the oil cooler and rear duct to ensure flow out
- Improved capacity and oil cooling ability
- Reduces transmission running temperature
- Direct replacement kit that requires no cutting or trimming
- Finished in high-quality black powder coat
- Includes all fittings and fixtures
- Features detailed fitting guide
OEM Gearbox Cooler
Height: 252mm
Width: 115mm
Depth: 32mm
Volume: 0.92-litres
Frontal area: 289cm²
AIRTEC Motorsport Gearbox Cooler
Height: 290mm
Width: 145mm
Depth: 60mm
Volume: 2.52-litres
Frontal area: 421cm²
Toyota Yaris Gen 2 - Automatic (2024-ONWARDS)
Autobeam | Autoprint | Auto Finesse
Orders placed before 1pm
Processed & shipped the same day unless otherwise stated.
Orders placed after 1pm
Processed & shipped the next working day.
Orders placed after 1pm on a Friday.
Processed & shipped the following Monday.
Orders are shipped Monday-Friday only.
All other brands
In stock items normally delivered within 1-3 days. Items made to order can be upto several weeks.
Stock for all other brands are not monitored therefor may be out of stock.
Information
As part of our expanding Toyota product range, AIRTEC Motorsport are proud to launch our Yaris GR Gen 2 uprated automatic gearbox oil cooler suitable for track or fast road use.
Whilst the Gen 1 Yaris GR did not feature radiators or coolers behind the bumper, AIRTEC Motorsport created a pair fitted behind the bumper to help cooling and proved effective, so it was no surprise that the new and improved Gen 2 Yaris GR came fitted with an auxiliary radiator and gearbox cooler for the automatic version (not manual) already located behind the bumper.
That gave us a head start to create a direct replacement oil cooler that was larger in capacity to help cooling. As a result, the increased core size radiator is taller, wider and deeper, which means capacity is increased by 172% compared to standard, whilst frontal area is also increased by 45% to help cool the extra capacity.
To ensure its effectiveness, the comprehensive package also features a front guide to direct fresh air into the oil cooler as well as a rear duct to ensure flow out.
Finished in a high-quality black powder coat, the kit requires no trimming or cutting and can be reverted back to standard. The fitting kit includes all lines and fittings, as well as all fixtures required to fit, including a detailed installation guide.
Despite the significant improvements, the oil cooler fits neatly behind the bumper and requires no modifications to fit and comes complete with new mounting bracket and oil lines.
Finished in a high-quality powder-coated black finish, the comprehensive fitting kit includes a detailed instruction fitting guide.
Features
- Comprehensive kit designed specifically for the Yaris GR Gen 2 Automatic
- 172% larger core compared to standard cooler
- 45% increase in frontal area compared to standard cooler
- Front guide to direct fresh air into the oil cooler and rear duct to ensure flow out
- Improved capacity and oil cooling ability
- Reduces transmission running temperature
- Direct replacement kit that requires no cutting or trimming
- Finished in high-quality black powder coat
- Includes all fittings and fixtures
- Features detailed fitting guide
Dimensions
OEM Gearbox Cooler
Height: 252mm
Width: 115mm
Depth: 32mm
Volume: 0.92-litres
Frontal area: 289cm²
AIRTEC Motorsport Gearbox Cooler
Height: 290mm
Width: 145mm
Depth: 60mm
Volume: 2.52-litres
Frontal area: 421cm²
Fitment
Toyota Yaris Gen 2 - Automatic (2024-ONWARDS)
