As part of our expanding Toyota product range, AIRTEC Motorsport is proud to launch our intercooler upgrade for the Yaris GR Gen 2, suitable for track or fast road use.
Following on from the huge success of our Stage 1 intercooler for the Gen 1 model, we’ve created a package suitable for Gen 2 models with either automatic or manual transmission.
|
- Information
- Features
- Fitment
- Dimensions
- Shipping
- Reviews
The second generation Yaris GR uses a slightly different intercooler kit to the first generation cars in terms of fitting and the use of the water spray bar. Therefore in order to ensure there is no noticeable loss in performance during extended periods of hard driving on road or track, AIRTEC Motorsport has developed a larger, freer-flowing intercooler that is a direct replacement for the smaller and more restrictive OEM item.
Suitable for Gen 2 models with either automatic or manual transmission, our Stage 1 intercooler features a stepped-core design to make the most of the limited space available behind the bumper. Offering a huge 64% increase in overall capacity in comparison to the original intercooler, it also offers a 30% increase in frontal area over standard, which allows it to make the very most of the air flow provided.
Our solution to increasing the intercooler’s size and performance is based upon our stepped-core design to make the most of the limited space available behind the bumper. The core steps from 110mm to 70mm and in doing so offers a huge 64% increase in overall capacity in comparison to the original intercooler. It also offers a 30% increase in frontal area over standard, which allows it to make the very most of the air flow provided.
The inlet side of the intercooler retains a 50mm diameter to ensure minimal turbo lag whilst the outlet side increases to 60mm to offer less restriction.
Together with our high-flow, moulded one-piece cast end tanks and an internal air diverter to ensure flow is directed correctly and efficiently, the AIRTEC Motorsport intercooler offers much greater efficiency and volume over standard.

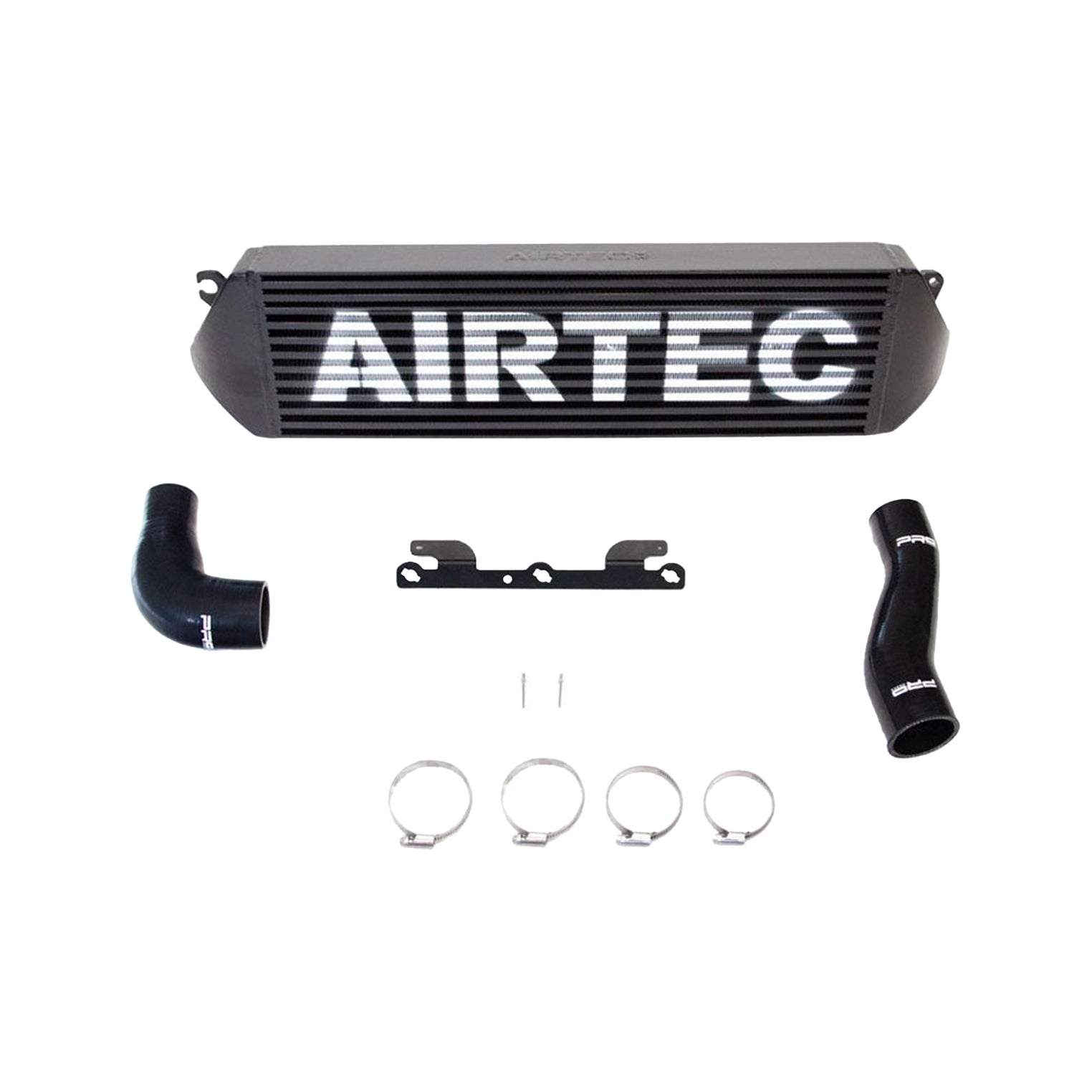

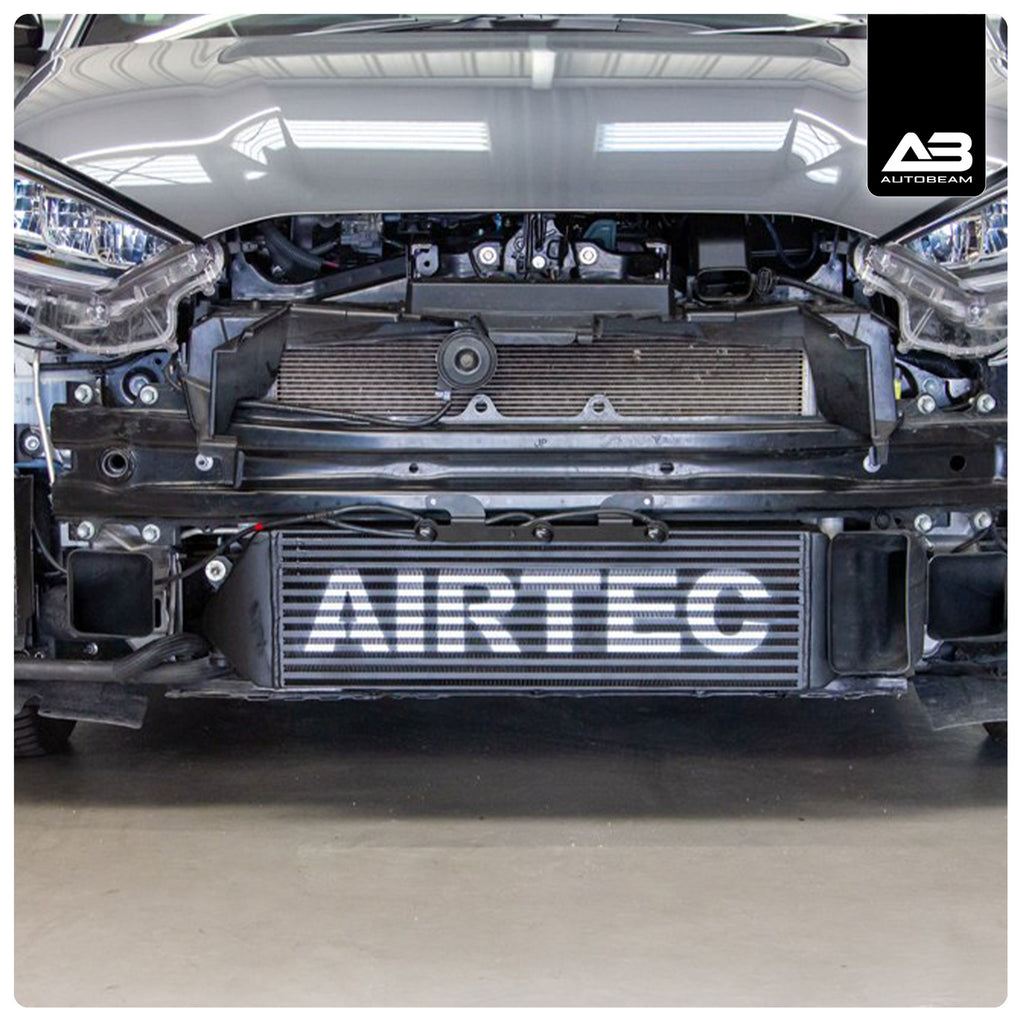

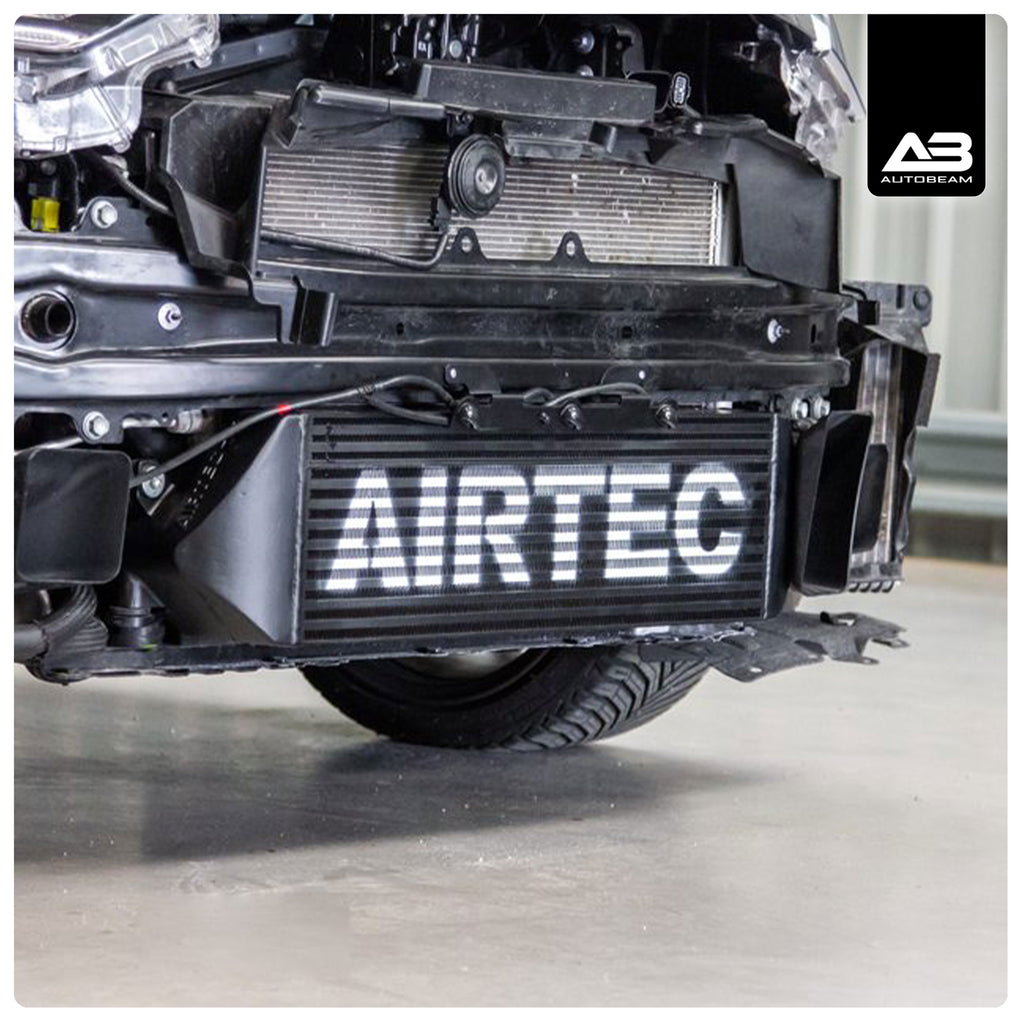

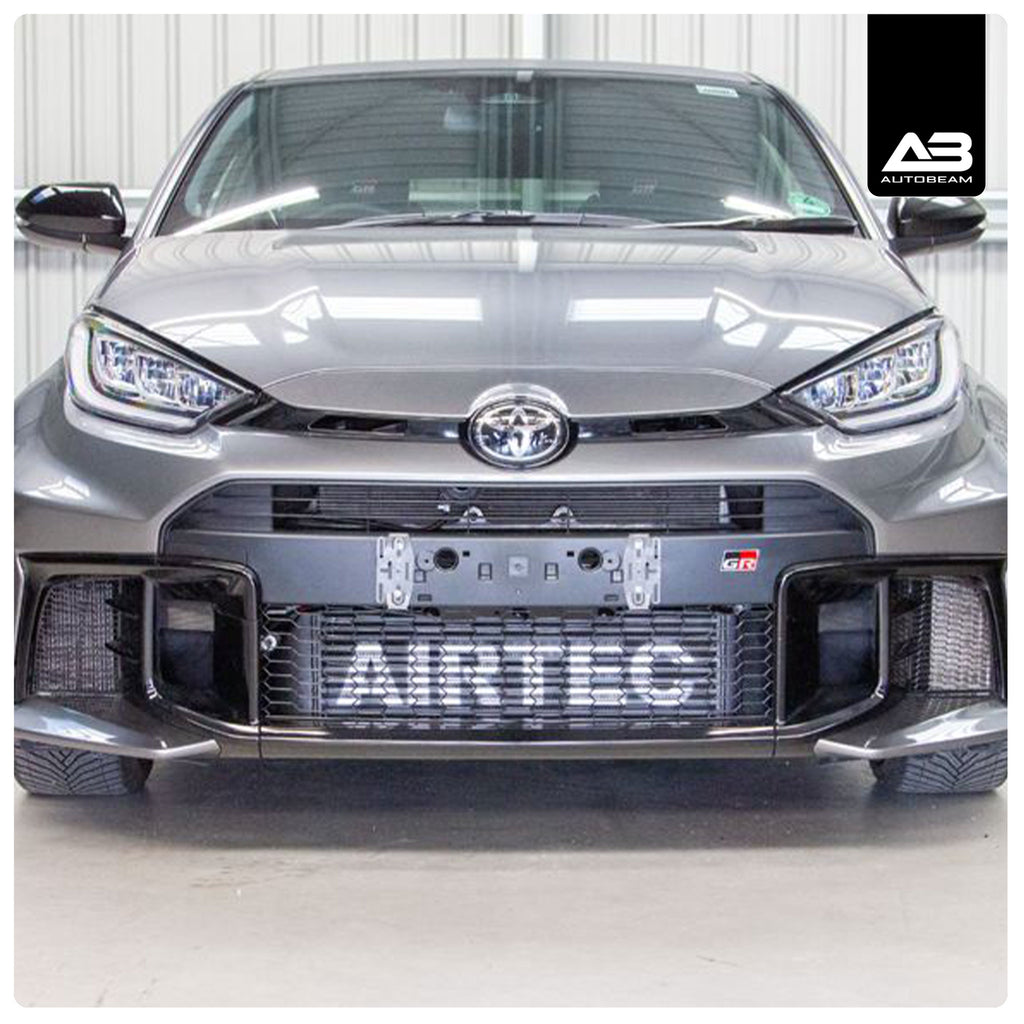

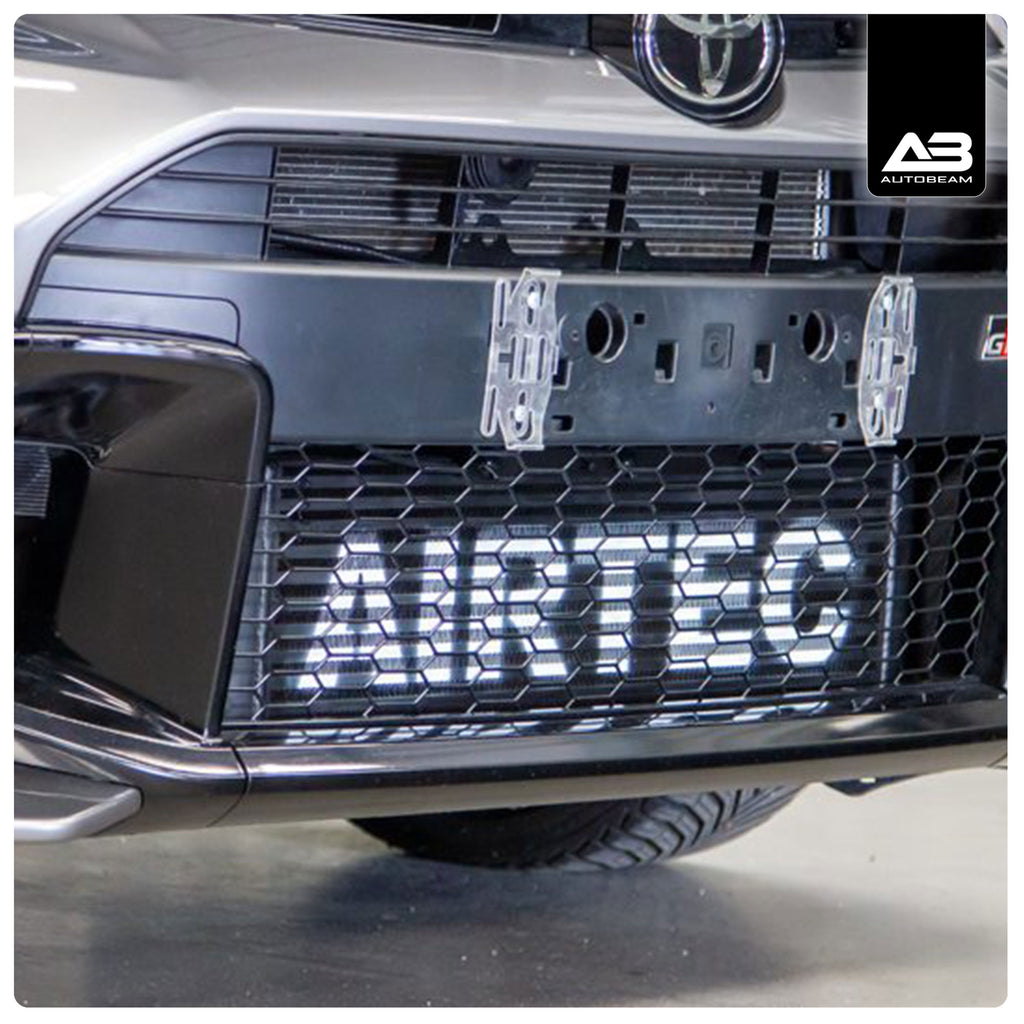

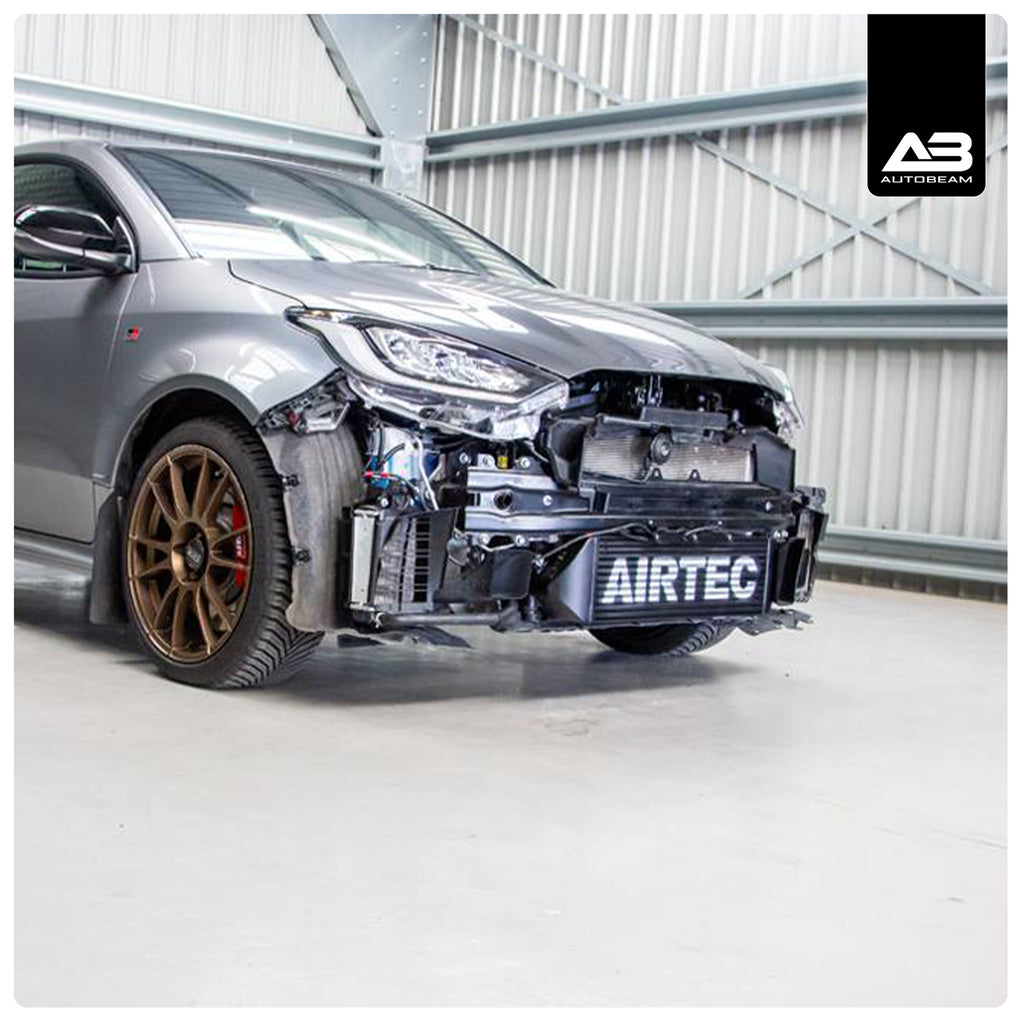

Despite this improvement, the kit fits neatly behind the original bumper and requires no trimming or cutting, and can be reverted back to standard with no issues. Designed to fit both auto and manual transmissions and includes a new bracket to mount the water spray bar. The comprehensive fitting kit includes all the correct fixtures and fittings, Pro Hoses silicone connectors as well as step-by-step installation instructions.
The intercooler is available in a Pro-Series Black finish (with or without the AIRTEC logo) and gloss black Pro Hoses silicone connectors.
- Suitable specifically for the Gen 2 Yaris GR – fits auto and manual transmissions
- 64% increase in capacity compared to original intercooler
- 30% increase in frontal area compared to original intercooler
- Huge increase in cooling ability
- Reduced charge temperatures
- High-flow, moulded one-piece cast end tanks
- Larger outlet pipe
- New bracket to mount water spray bar.
- Powder coated black finish
- All fittings and fixtures included
- Comes with detailed fitting guide
Toyota Yaris Gen 2 (2024-ONWARDS)
Width: 610mm
Height: 195mm
Depth: 110mm/70mm stepped
Inlet: 50mm
Outlet: 60mm
Autobeam | Autoprint | Auto Finesse
Orders placed before 1pm
Processed & shipped the same day unless otherwise stated.
Orders placed after 1pm
Processed & shipped the next working day.
Orders placed after 1pm on a Friday.
Processed & shipped the following Monday.
Orders are shipped Monday-Friday only.
All other brands
In stock items normally delivered within 1-3 days. Items made to order can be upto several weeks.
Stock for all other brands are not monitored therefor may be out of stock.
Information
The second generation Yaris GR uses a slightly different intercooler kit to the first generation cars in terms of fitting and the use of the water spray bar. Therefore in order to ensure there is no noticeable loss in performance during extended periods of hard driving on road or track, AIRTEC Motorsport has developed a larger, freer-flowing intercooler that is a direct replacement for the smaller and more restrictive OEM item.
Suitable for Gen 2 models with either automatic or manual transmission, our Stage 1 intercooler features a stepped-core design to make the most of the limited space available behind the bumper. Offering a huge 64% increase in overall capacity in comparison to the original intercooler, it also offers a 30% increase in frontal area over standard, which allows it to make the very most of the air flow provided.
Our solution to increasing the intercooler’s size and performance is based upon our stepped-core design to make the most of the limited space available behind the bumper. The core steps from 110mm to 70mm and in doing so offers a huge 64% increase in overall capacity in comparison to the original intercooler. It also offers a 30% increase in frontal area over standard, which allows it to make the very most of the air flow provided.
The inlet side of the intercooler retains a 50mm diameter to ensure minimal turbo lag whilst the outlet side increases to 60mm to offer less restriction.
Together with our high-flow, moulded one-piece cast end tanks and an internal air diverter to ensure flow is directed correctly and efficiently, the AIRTEC Motorsport intercooler offers much greater efficiency and volume over standard.
Despite this improvement, the kit fits neatly behind the original bumper and requires no trimming or cutting, and can be reverted back to standard with no issues. Designed to fit both auto and manual transmissions and includes a new bracket to mount the water spray bar. The comprehensive fitting kit includes all the correct fixtures and fittings, Pro Hoses silicone connectors as well as step-by-step installation instructions.
The intercooler is available in a Pro-Series Black finish (with or without the AIRTEC logo) and gloss black Pro Hoses silicone connectors.
Features
- Suitable specifically for the Gen 2 Yaris GR – fits auto and manual transmissions
- 64% increase in capacity compared to original intercooler
- 30% increase in frontal area compared to original intercooler
- Huge increase in cooling ability
- Reduced charge temperatures
- High-flow, moulded one-piece cast end tanks
- Larger outlet pipe
- New bracket to mount water spray bar.
- Powder coated black finish
- All fittings and fixtures included
- Comes with detailed fitting guide
Fitment
Toyota Yaris Gen 2 (2024-ONWARDS)
Dimensions
Width: 610mm
Height: 195mm
Depth: 110mm/70mm stepped
Inlet: 50mm
Outlet: 60mm
