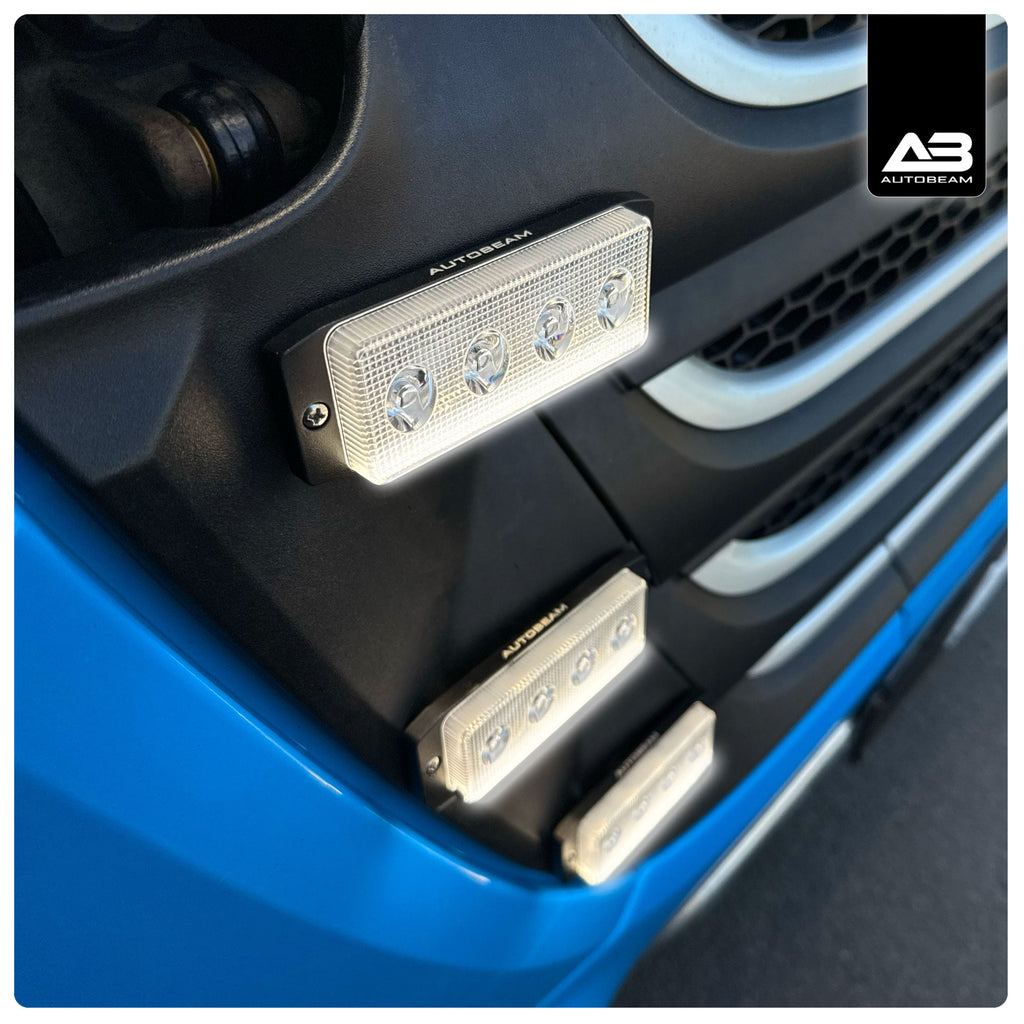

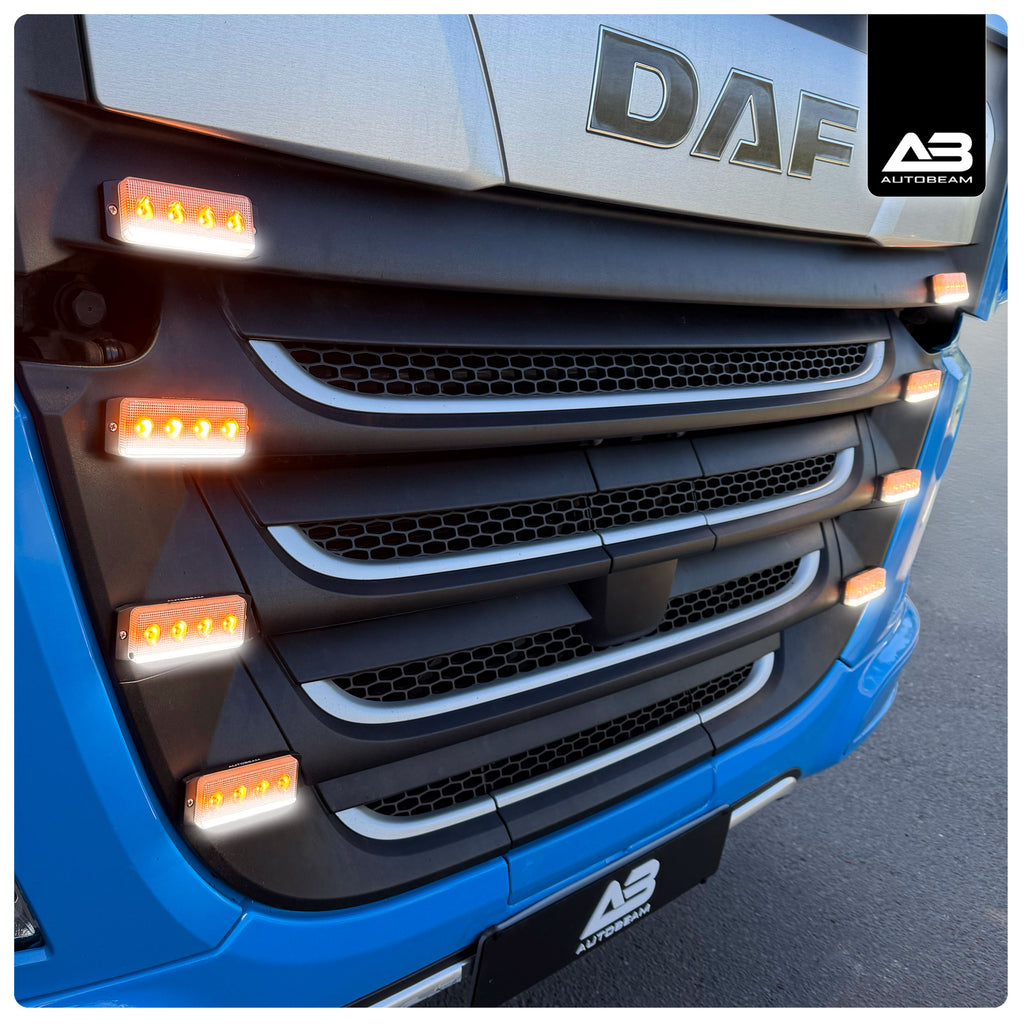

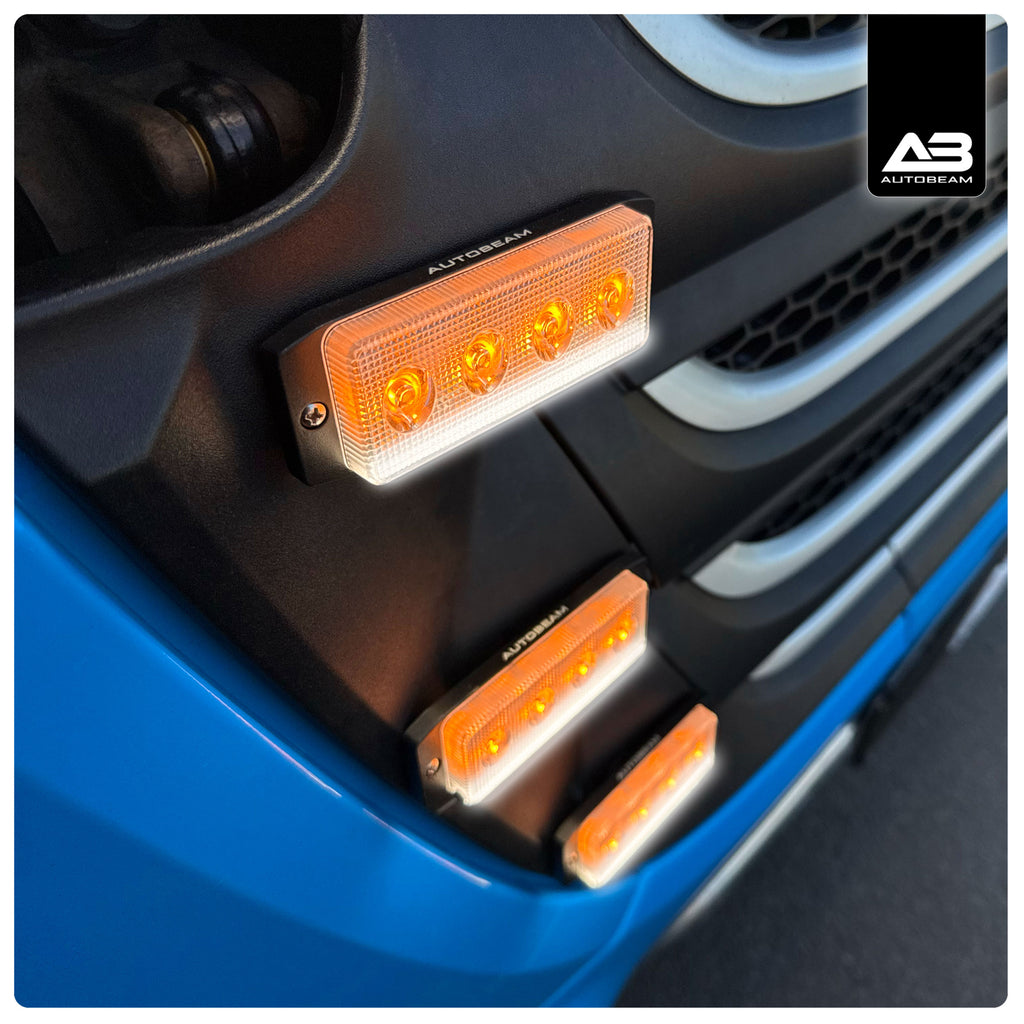

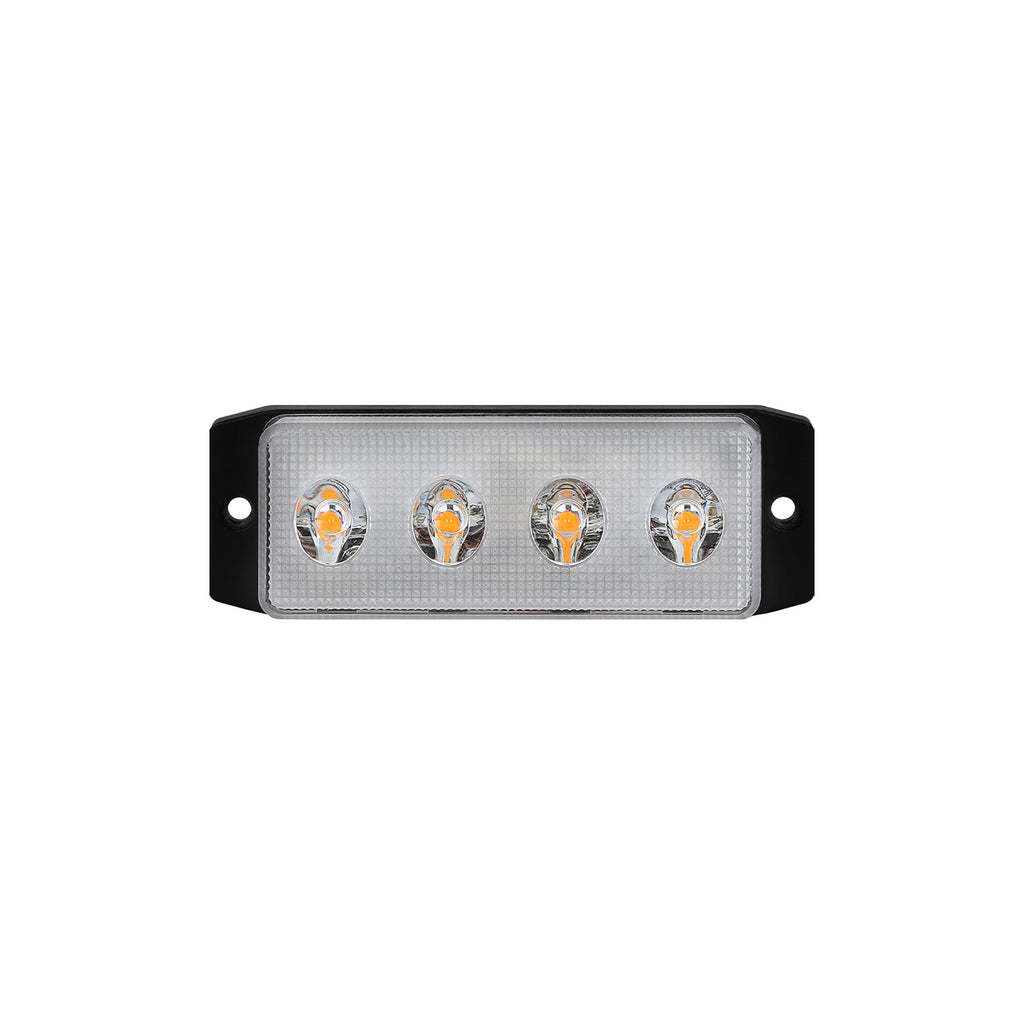

Autobeam LED Marker units feature advanced optical projector materials to deliver significantly brighter strobe illumination, enhancing both style and road safety. The integrated DRL uses a diffuser to produce a smooth, uniform light for a sleek daytime running effect.
|
- Features
- Specification
- Fitment
- Flash patterns
- What's in the box
- Other Information
- Shipping
- Reviews
- Exceptional Lumen Output – Delivers bright, clear illumination for maximum visibility
- Premium Build Quality – Crafted with high-grade materials for superior durability
- IP68 Rated Waterproofing – Offers complete protection against dust and prolonged water immersion, ensuring reliable performance even during high-pressure washing and harsh environmental conditions.
- Fully Sealed Housing with Breather Vent – Provides complete protection against environmental elements while the integrated breather vent prevents condensation and pressure build-up for long-lasting reliability.
- Vibration Resistant – Designed to withstand harsh road conditions and heavy-duty use
- Shock Resistant – Engineered to endure sudden impacts without compromising performance
- Extended Lifespan – Built to last, reducing maintenance and replacement needs
- Energy Efficient – Low power consumption without sacrificing brightness
IP Rating: IP68

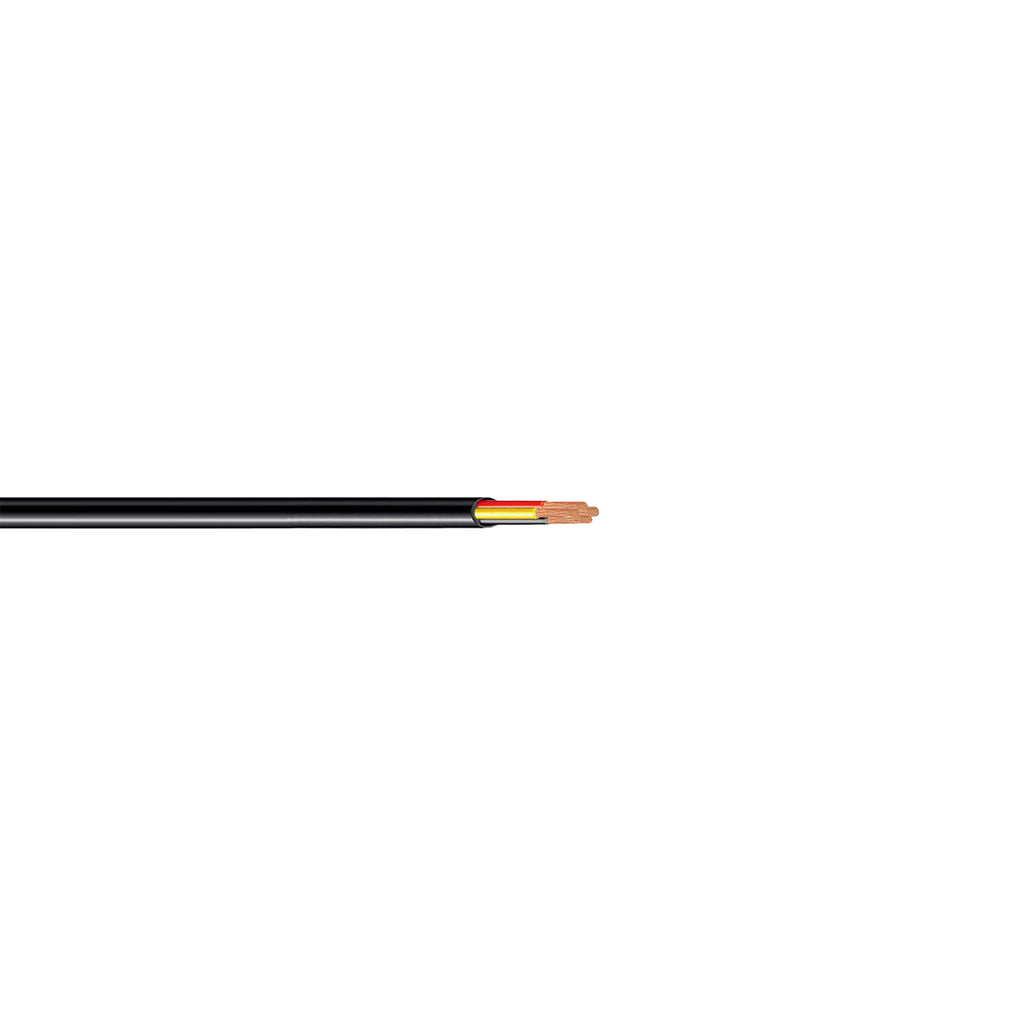

Cable length: 300mm
Voltage: 12/24v | DC 10-30v
Housing Material: High-grade Aluminium
Lens Material: PC | Scratch resistant
Operating temperature: -40℃ - +65℃
Certification: ECE R65 XA2,XB2,XR2, SAE J595 Class1. ECE R10, CISPR25 Class 3

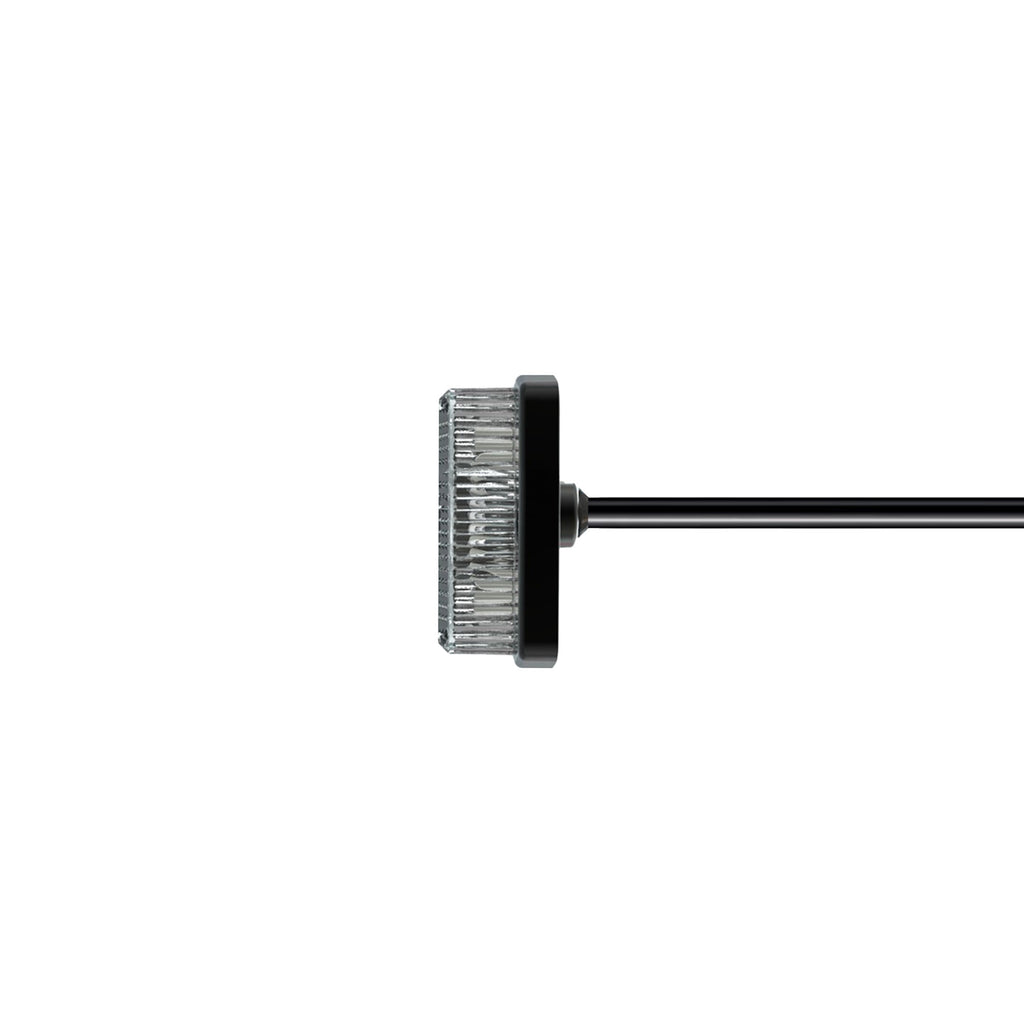

Width: 120mm | Height: 39mm | Depth: 18mm
DRL Wattage: 7w
Strobe Wattage: 4w

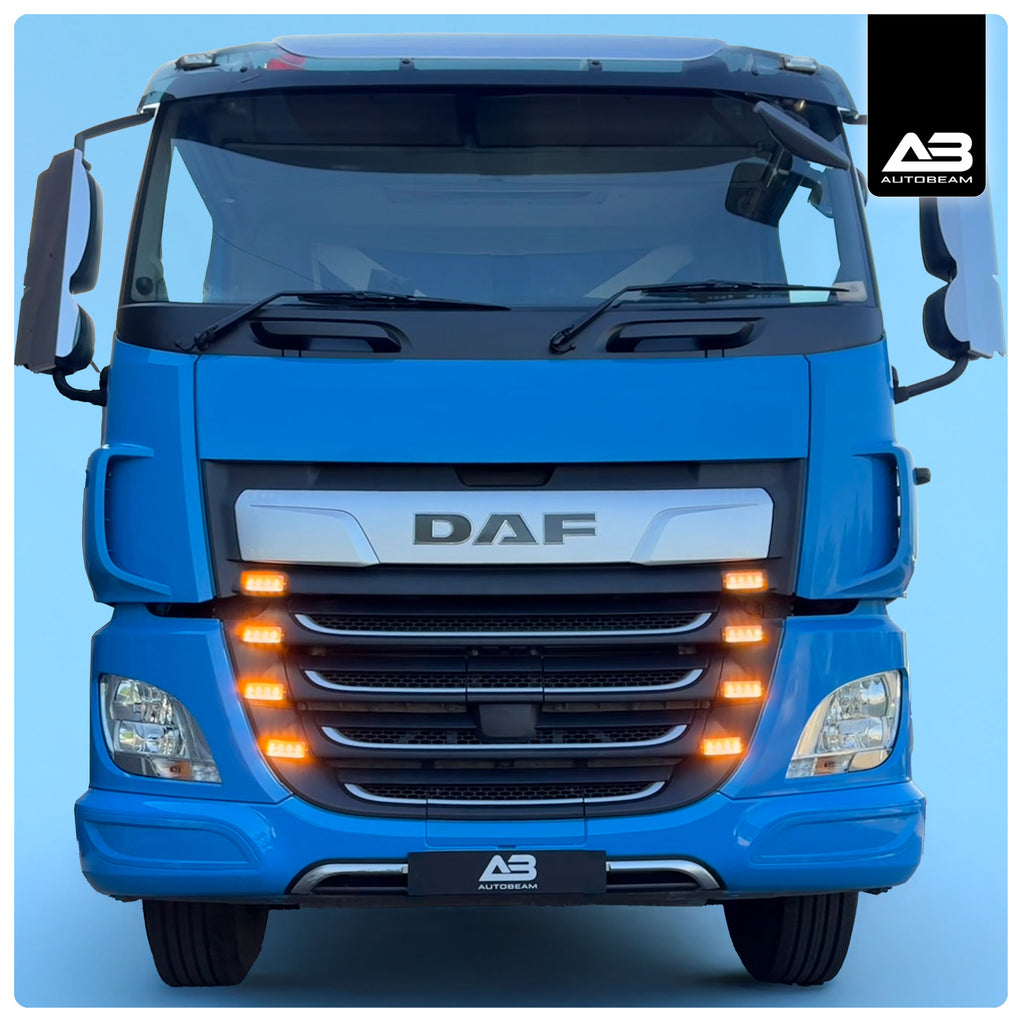

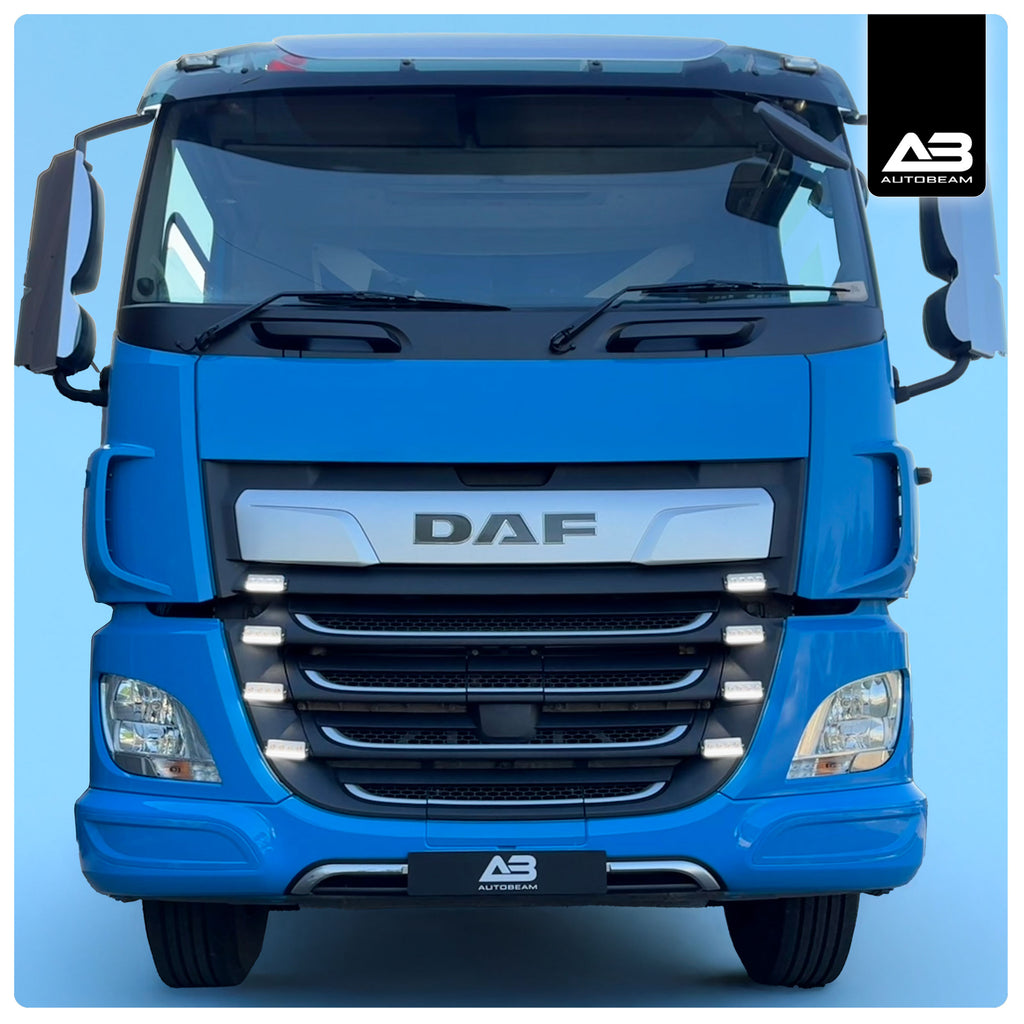

These units are great for any 12v or 24v application such as a car, van, trailer, 4x4, Bus or lorry.
Connections
Red: Strobe +
Black: Negative -
White: DRL +
Yellow: Sync wire / pattern selection (to sync with other markers connect yellows together, make sure they are on the same pattern before connecting) (To change pattern touch Yellow wire onto +)
Green: Asynchronization (Connect Green to Yellow for opposite pattern)
|
1 |
Single Flash,ECE R65 Class 2（by day） |
125FPM |
|
2 |
Single Flash,ECE R65 Class 1（by night） |
125FPM |
|
3 |
Single Flash, California Title 13 |
75FPM |
|
4 |
Double Flash |
125FPM |
|
5 |
Triple Flash |
122FPM |
|
6 |
Quadruple Flash |
141FPM |
|
7 |
Quintuple Flash |
79FPM |
|
8 |
Combination Single/Double Flash |
|
|
9 |
Combination Single/Triple Flash |
|
|
10 |
Combination Single/Quintuple Flash |
|
|
11 |
Strobe |
600 FPM |
|
12 |
Cruise(20%) |
|

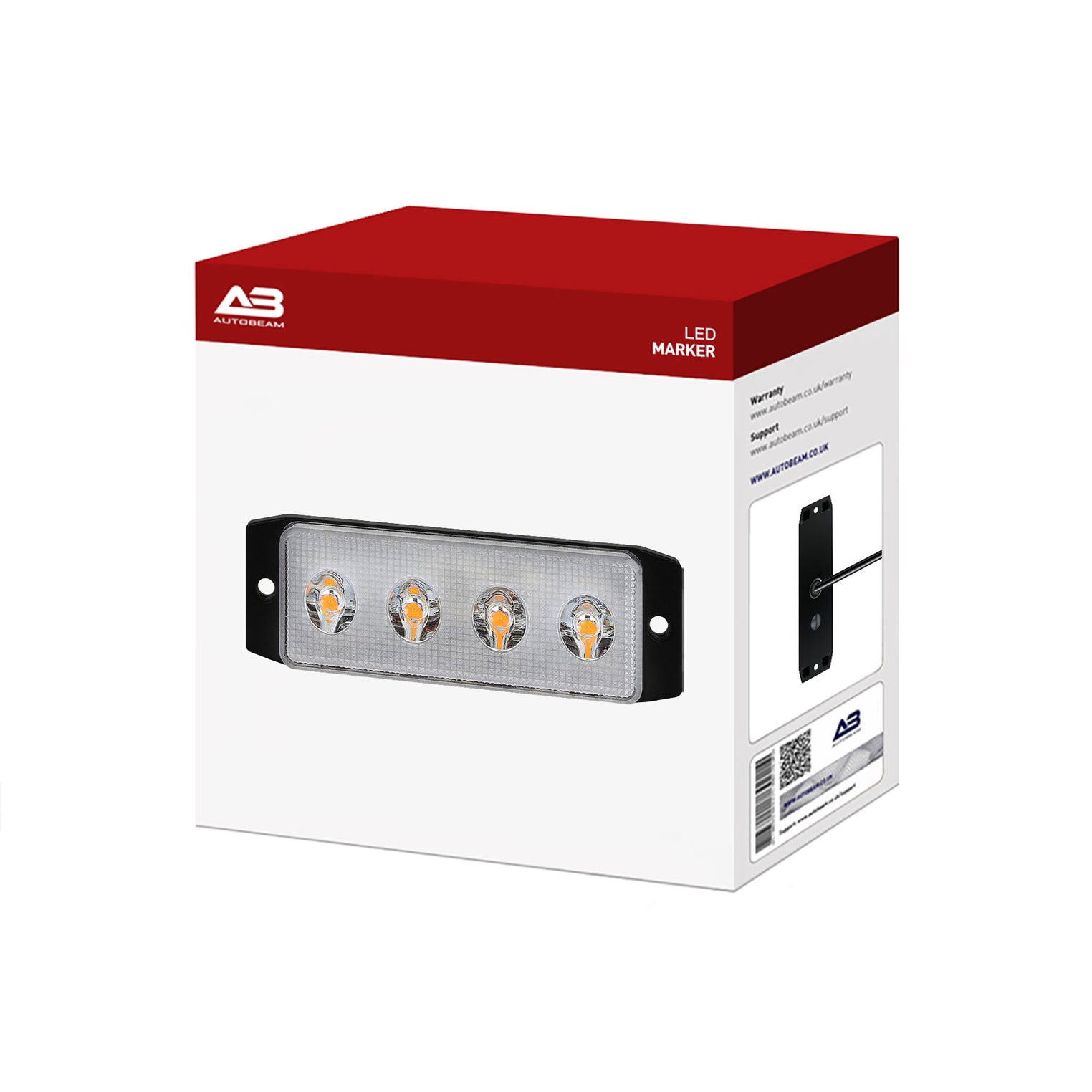

1x LED Marker light
1x Foam gasket
2x Stainless steel screws
Models may vary. Ensure fitment is correct for the vehicle before purchase. Packaging type may vary depending on stock and shipping restrictions.
Warranty: 2 Years
Autobeam | Autoprint | Auto Finesse
Orders placed before 1pm
Processed & shipped the same day unless otherwise stated.
Orders placed after 1pm
Processed & shipped the next working day.
Orders placed after 1pm on a Friday.
Processed & shipped the following Monday.
Orders are shipped Monday-Friday only.
All other brands
In stock items normally delivered within 1-3 days. Items made to order can be upto several weeks.
Stock for all other brands are not monitored therefor may be out of stock.
Features
- Exceptional Lumen Output – Delivers bright, clear illumination for maximum visibility
- Premium Build Quality – Crafted with high-grade materials for superior durability
- IP68 Rated Waterproofing – Offers complete protection against dust and prolonged water immersion, ensuring reliable performance even during high-pressure washing and harsh environmental conditions.
- Fully Sealed Housing with Breather Vent – Provides complete protection against environmental elements while the integrated breather vent prevents condensation and pressure build-up for long-lasting reliability.
- Vibration Resistant – Designed to withstand harsh road conditions and heavy-duty use
- Shock Resistant – Engineered to endure sudden impacts without compromising performance
- Extended Lifespan – Built to last, reducing maintenance and replacement needs
- Energy Efficient – Low power consumption without sacrificing brightness
Specification
IP Rating: IP68
Cable length: 300mm
Voltage: 12/24v | DC 10-30v
Housing Material: High-grade Aluminium
Lens Material: PC | Scratch resistant
Operating temperature: -40℃ - +65℃
Certification: ECE R65 XA2,XB2,XR2, SAE J595 Class1. ECE R10, CISPR25 Class 3
Width: 120mm | Height: 39mm | Depth: 18mm
DRL Wattage: 7w
Strobe Wattage: 4w
Fitment
These units are great for any 12v or 24v application such as a car, van, trailer, 4x4, Bus or lorry.
Connections
Red: Strobe +
Black: Negative -
White: DRL +
Yellow: Sync wire / pattern selection (to sync with other markers connect yellows together, make sure they are on the same pattern before connecting) (To change pattern touch Yellow wire onto +)
Green: Asynchronization (Connect Green to Yellow for opposite pattern)
Flash patterns
|
1 |
Single Flash,ECE R65 Class 2（by day） |
125FPM |
|
2 |
Single Flash,ECE R65 Class 1（by night） |
125FPM |
|
3 |
Single Flash, California Title 13 |
75FPM |
|
4 |
Double Flash |
125FPM |
|
5 |
Triple Flash |
122FPM |
|
6 |
Quadruple Flash |
141FPM |
|
7 |
Quintuple Flash |
79FPM |
|
8 |
Combination Single/Double Flash |
|
|
9 |
Combination Single/Triple Flash |
|
|
10 |
Combination Single/Quintuple Flash |
|
|
11 |
Strobe |
600 FPM |
|
12 |
Cruise(20%) |
|
What's in the box
1x LED Marker light
1x Foam gasket
2x Stainless steel screws
Other Information
Models may vary. Ensure fitment is correct for the vehicle before purchase. Packaging type may vary depending on stock and shipping restrictions.
Warranty: 2 Years
