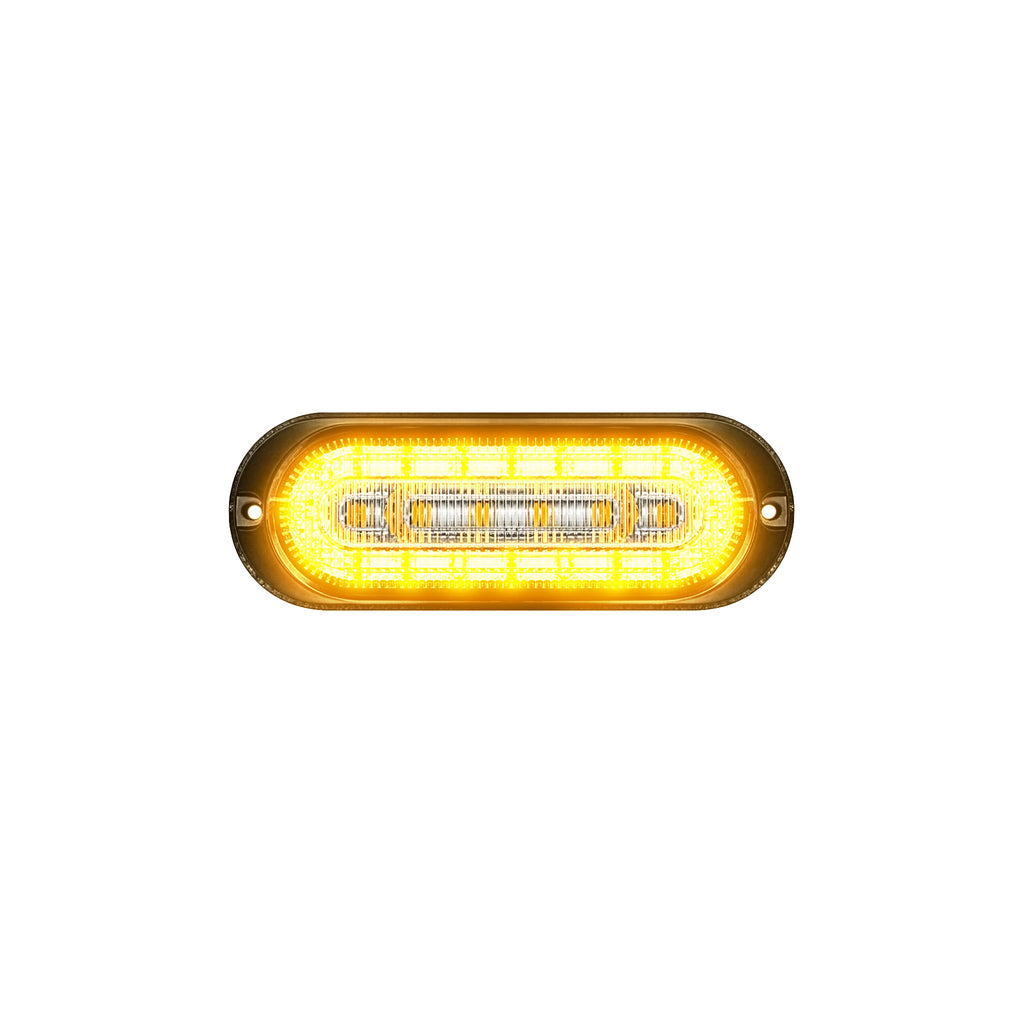

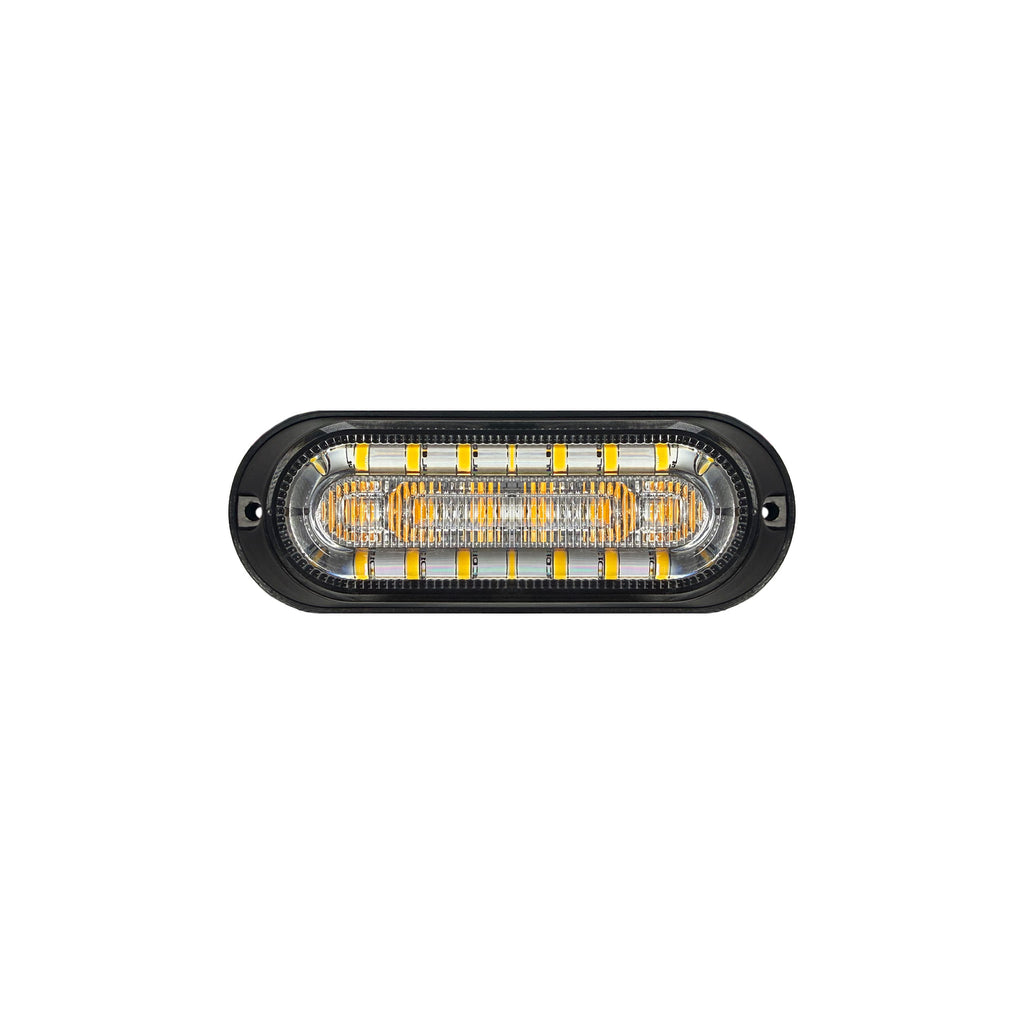

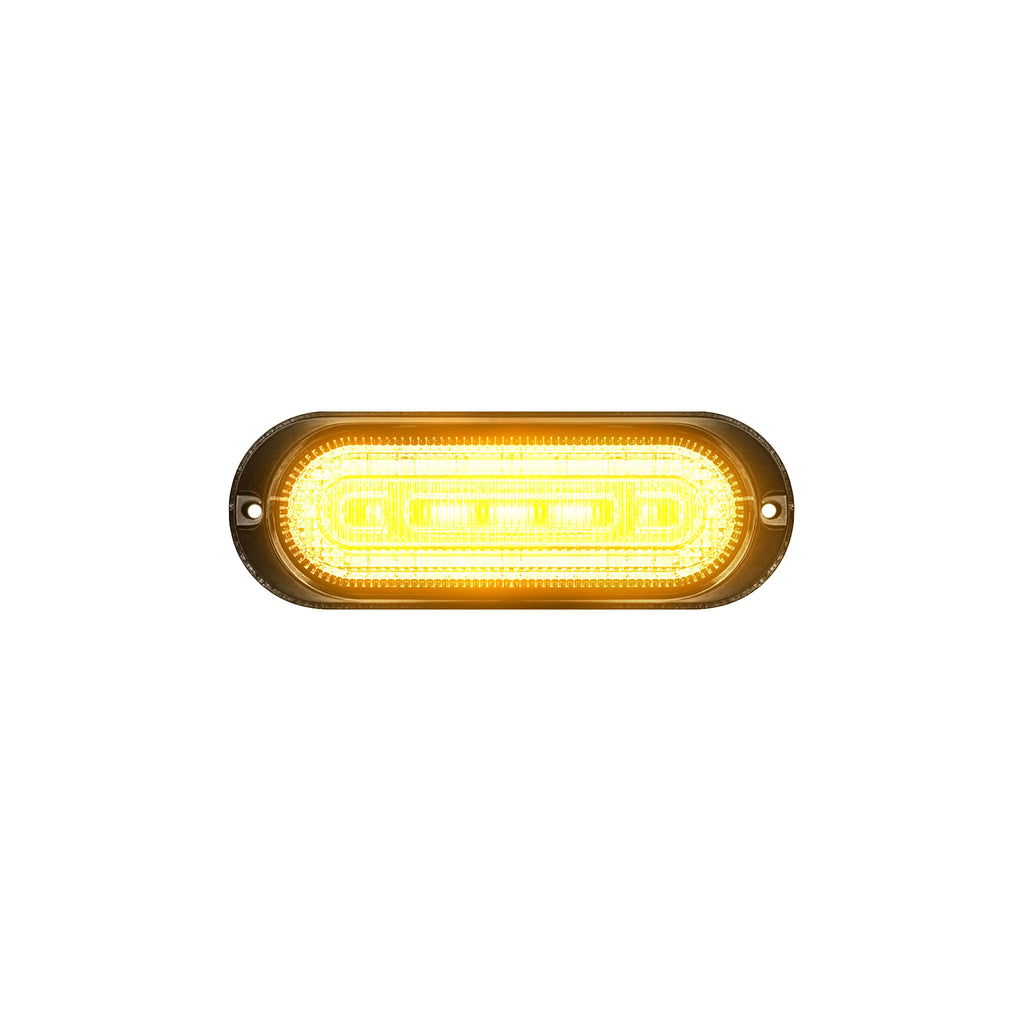

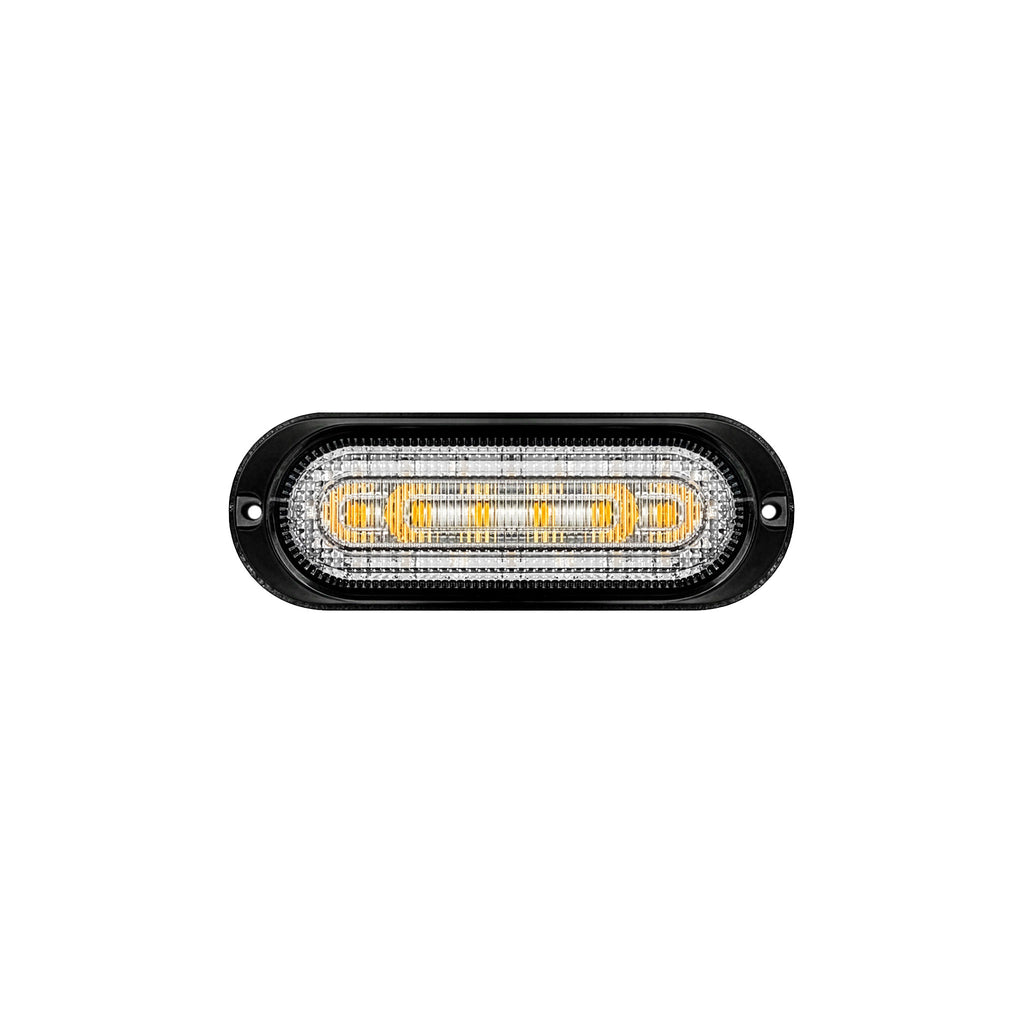

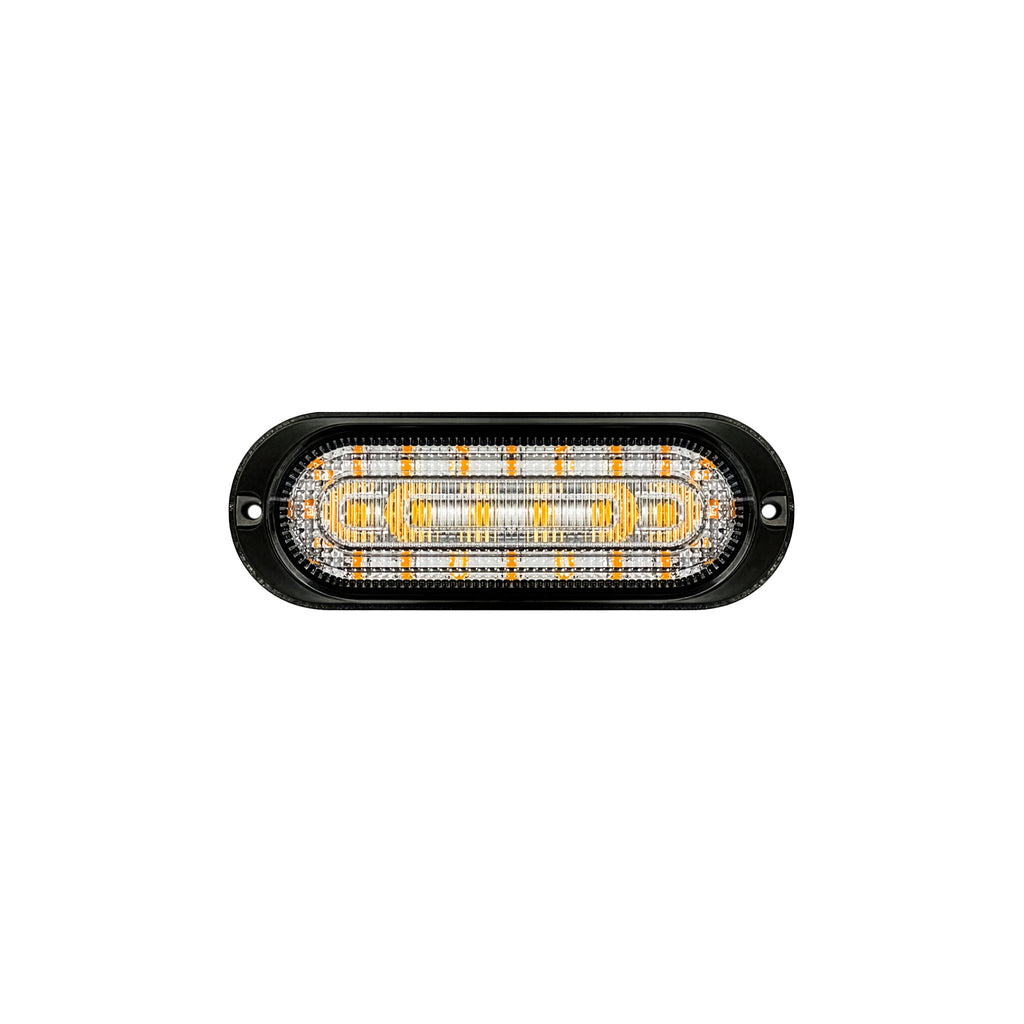

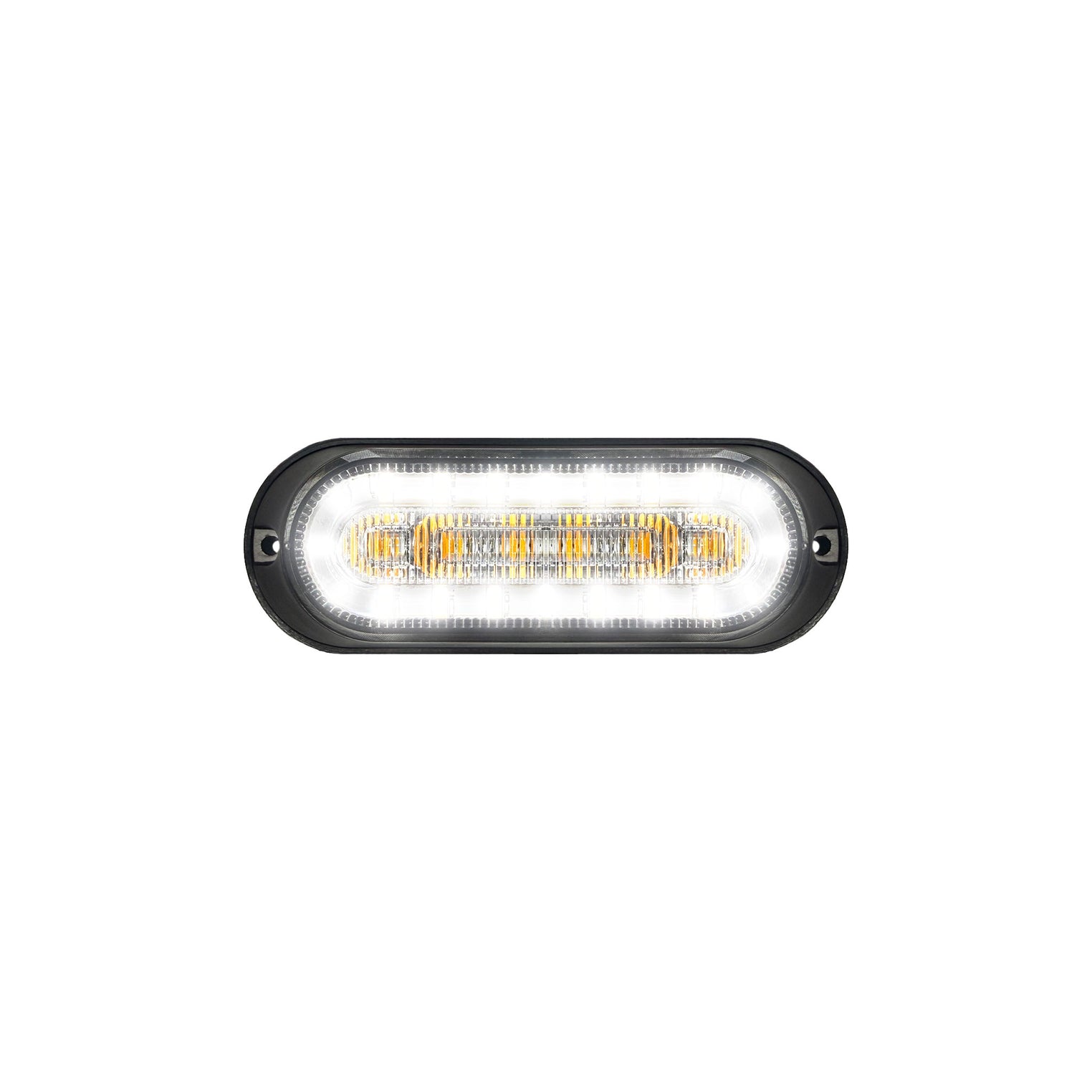

Built to perform in the toughest conditions, the Autobeam HeavyDuty Series features a larger, more robust design for maximum durability and presence. Designed for commercial, off-road, and demanding environments, these units offer rugged construction, advanced thermal management, and dependable high-output performance. When strength, reliability, and functionality matter most, HeavyDuty delivers.
|
- Features
- Specification
- Fitment
- Flash patterns
- What's in the box
- Other Information
- Shipping
- Reviews
-
High Lumen Output – Bright, clear visibility
-
Premium Build – Durable, high-quality materials
-
IP69 Rated – High-pressure water resistant
-
Sealed + Vented – No moisture or condensation
-
Vibration & Shock Resistant – Built for tough use
-
Long Lifespan – Reliable, low maintenance
- Energy Efficient – Low power, high performance
IP Rating: IP68
Cable length: 200mm
Voltage: 12/24v | DC 10-30v
Housing Material: High-grade Aluminium
Lens Material: PC | Scratch resistant
Operating temperature: -20℃ - +60℃
Certification: ECE R65/R7

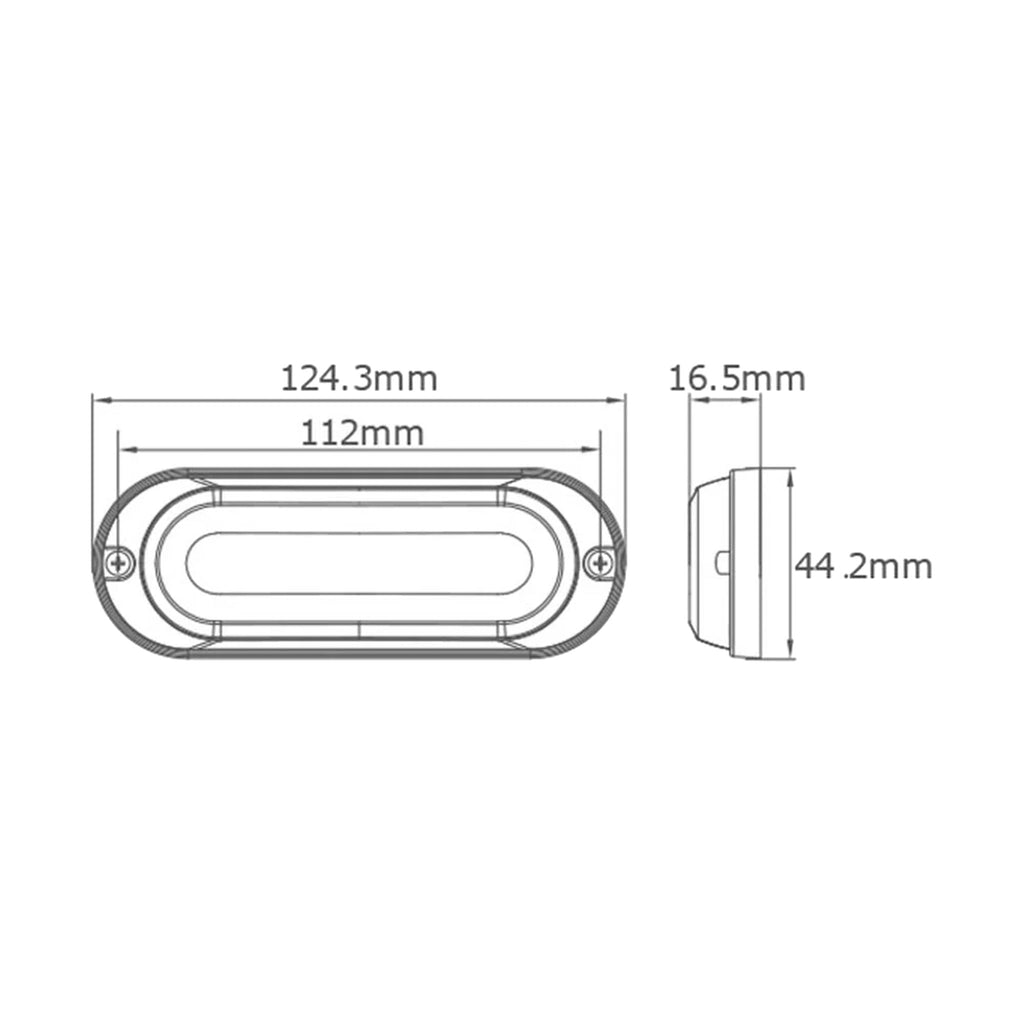

Width: 124mm | Height: 44mm | Depth: 16mm
DRL Wattage: 5w
Strobe Wattage: 3w
These units are great for any 12v or 24v application such as a car, van, trailer, 4x4, Bus or lorry.

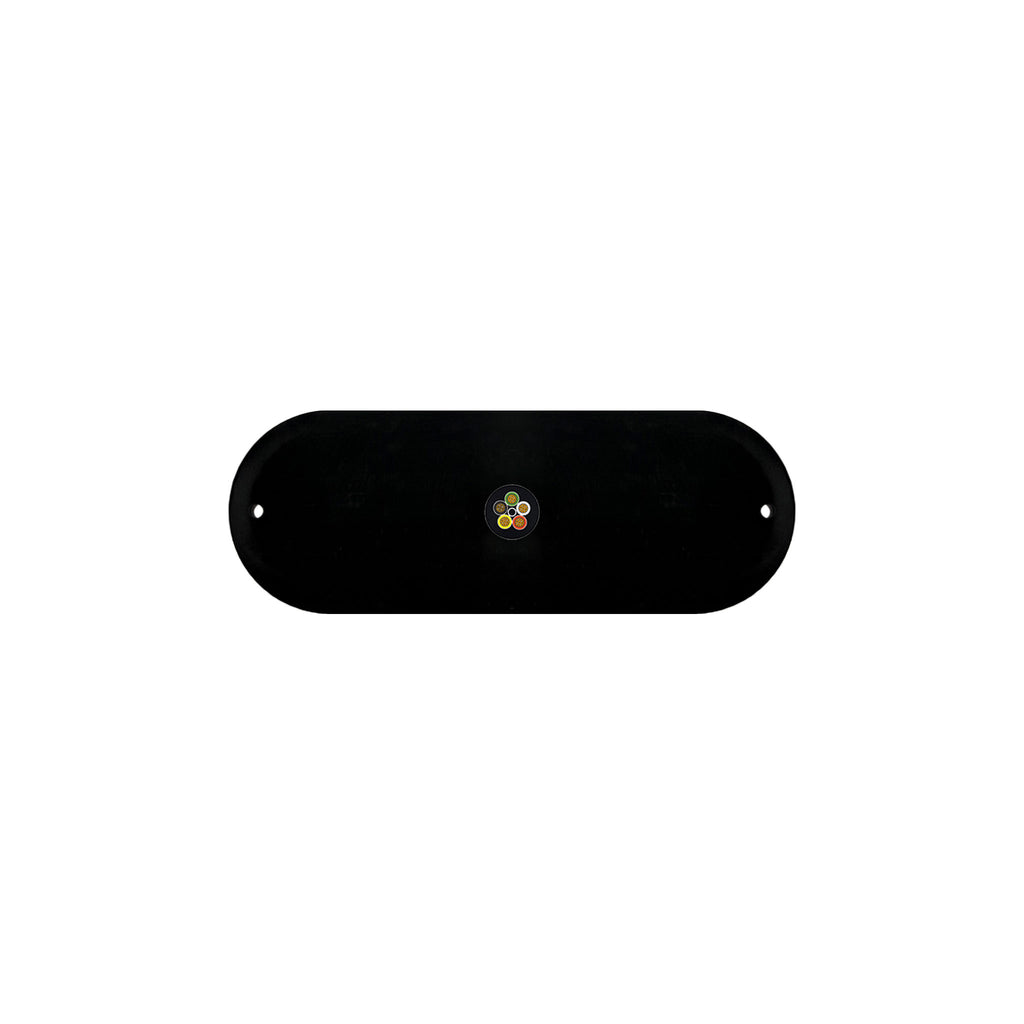

Connections
Red: Strobe +
Black: Negative -
White: DRL +
Yellow: Sync wire / pattern selection (to sync with other markers connect yellows together, make sure they are on the same pattern before connecting) (To change pattern touch Yellow wire onto +)
Green: Asynchronization (Connect Green to Yellow for opposite pattern)
1 - Random
2 - Single (Split)
3 - Double (Split)
4 - Quint (Split)
5 - Triple (All)
6 - Quint (All)
7 - Triple (Split)
8 - Single (All)
9 - Quint (All)
10 - Single-Quad (Split)

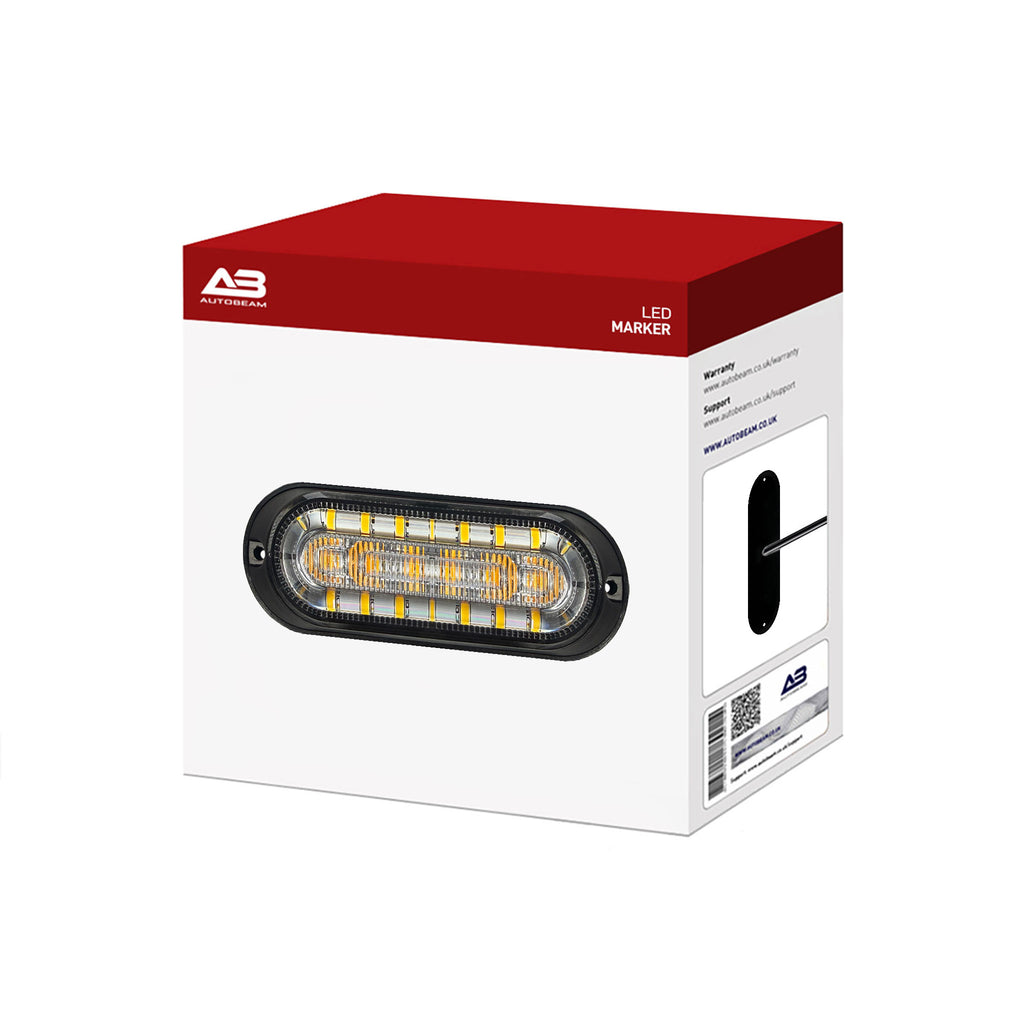

1x LED Marker light
2x Stainless steel screws
Models may vary. Ensure fitment is correct for the vehicle before purchase. Packaging type may vary depending on stock and shipping restrictions.
Warranty: 2 Years
Autobeam | Autoprint | Auto Finesse
Orders placed before 1pm
Processed & shipped the same day unless otherwise stated.
Orders placed after 1pm
Processed & shipped the next working day.
Orders placed after 1pm on a Friday.
Processed & shipped the following Monday.
Orders are shipped Monday-Friday only.
All other brands
In stock items normally delivered within 1-3 days. Items made to order can be upto several weeks.
Stock for all other brands are not monitored therefor may be out of stock.
Features
-
High Lumen Output – Bright, clear visibility
-
Premium Build – Durable, high-quality materials
-
IP69 Rated – High-pressure water resistant
-
Sealed + Vented – No moisture or condensation
-
Vibration & Shock Resistant – Built for tough use
-
Long Lifespan – Reliable, low maintenance
- Energy Efficient – Low power, high performance
Specification
IP Rating: IP68
Cable length: 200mm
Voltage: 12/24v | DC 10-30v
Housing Material: High-grade Aluminium
Lens Material: PC | Scratch resistant
Operating temperature: -20℃ - +60℃
Certification: ECE R65/R7
Width: 124mm | Height: 44mm | Depth: 16mm
DRL Wattage: 5w
Strobe Wattage: 3w
Fitment
These units are great for any 12v or 24v application such as a car, van, trailer, 4x4, Bus or lorry.
Connections
Red: Strobe +
Black: Negative -
White: DRL +
Yellow: Sync wire / pattern selection (to sync with other markers connect yellows together, make sure they are on the same pattern before connecting) (To change pattern touch Yellow wire onto +)
Green: Asynchronization (Connect Green to Yellow for opposite pattern)
Flash patterns
1 - Random
2 - Single (Split)
3 - Double (Split)
4 - Quint (Split)
5 - Triple (All)
6 - Quint (All)
7 - Triple (Split)
8 - Single (All)
9 - Quint (All)
10 - Single-Quad (Split)
What's in the box
1x LED Marker light
2x Stainless steel screws
Other Information
Models may vary. Ensure fitment is correct for the vehicle before purchase. Packaging type may vary depending on stock and shipping restrictions.
Warranty: 2 Years
