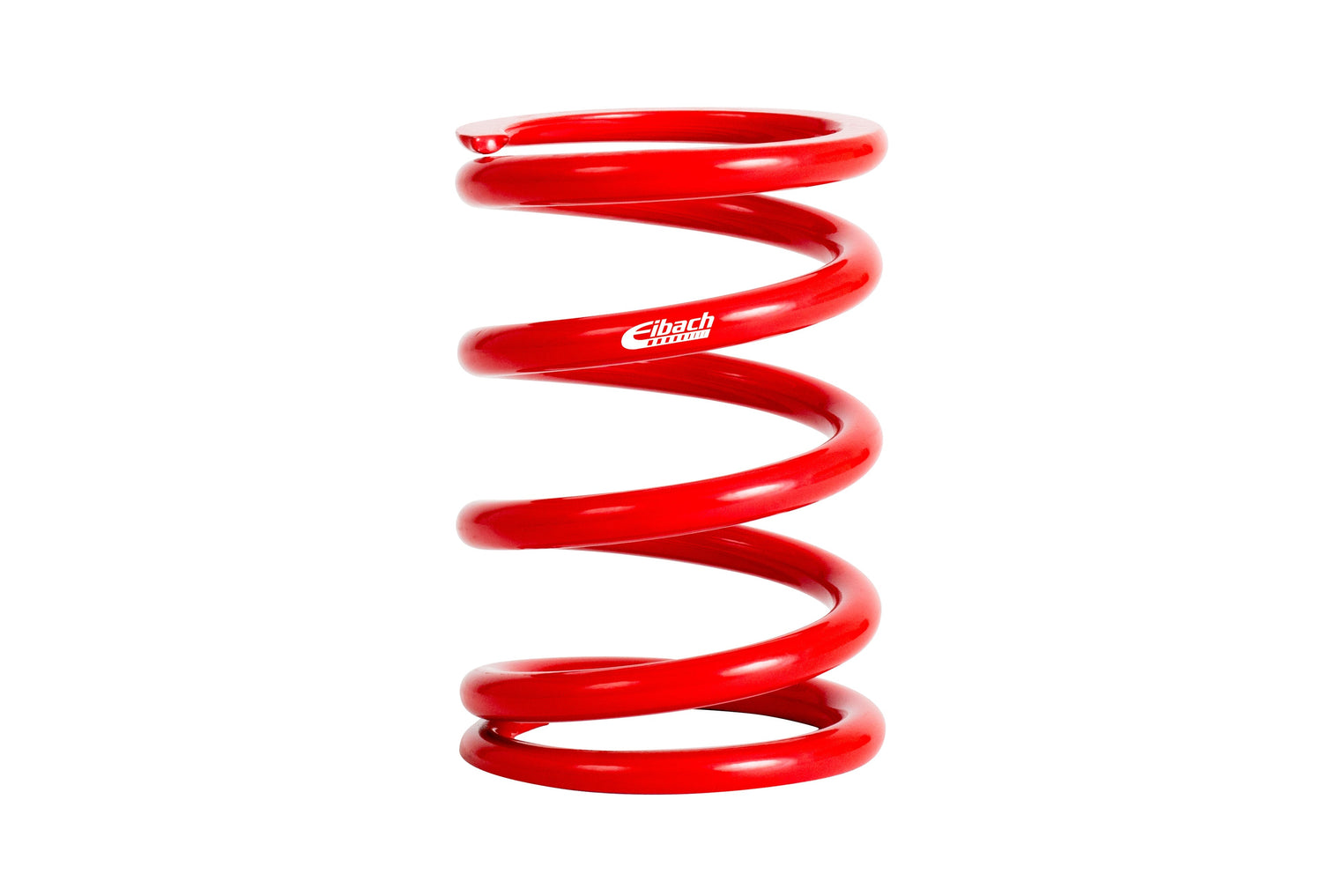

Part Number= 0225.225.0250

PG= ERT

Length= 3.46 (inch) / 88 (mm)

Diameter= 2.25 I.D. (inch) / 57 I.D. (mm)250 (lbs/inch)

Rate= 4.46 (KG/mm) 44 (N/mm)

Block Height= 1.2 (inch) / 30

Travel= 2.32 (inch) / 58 (mm)

Block Load= 578 (lbs) / 2571 (N))

Weight= 1.1 (lbs) / 0.5 (KGS)

Eibach Race Spring System

• Over 1,300 single components – main and tender springs – metric and imperial, various auxiliary race suspension accessories, ready and in stock on 5 continents
• Comprehensive Program of single components
• Single Main Springs with highest rate-linearity and lowest rate tolerance
• Progressive Characteristics via set-up of different springs serially – double or even triple spring combinations
• Extreme Low Weights achieved through Super Hi-Ten materials and manufacturing technology
• Smallest Solid heights, maximized spring travels and higher maximum loads
• Spring Surface Stabilization through specialized shot peening
• Every ERS Spring preset to block
• Block and Sag Resistant
• Smallest Tolerances and precise plane parallelism of spring ends
• High Dynamic Durability – under Motorsport conditions
• High quality corrosion protection by phosphating and epoxy coating
• Springs Printed with part-number (speaking code = rate and dimensions)
