Inspired by the Mini GP model’s under tray design, this is a direct replacement for the original, the functional vents actively help to pull warm air from the back of the radiator, down under the engine and into the low-pressure area of the car below the under tray. This effectively creates an increased flow path within the engine bay to transfer heat out, helping to reduce engine running temperatures.
Made from high-quality 2mm aluminium for increased strength.
The undertray uses existing mounting points and bolts, but it is essential the original fittings are in good condition.
|
- Information
- Features
- Fitment
- Shipping
- Reviews

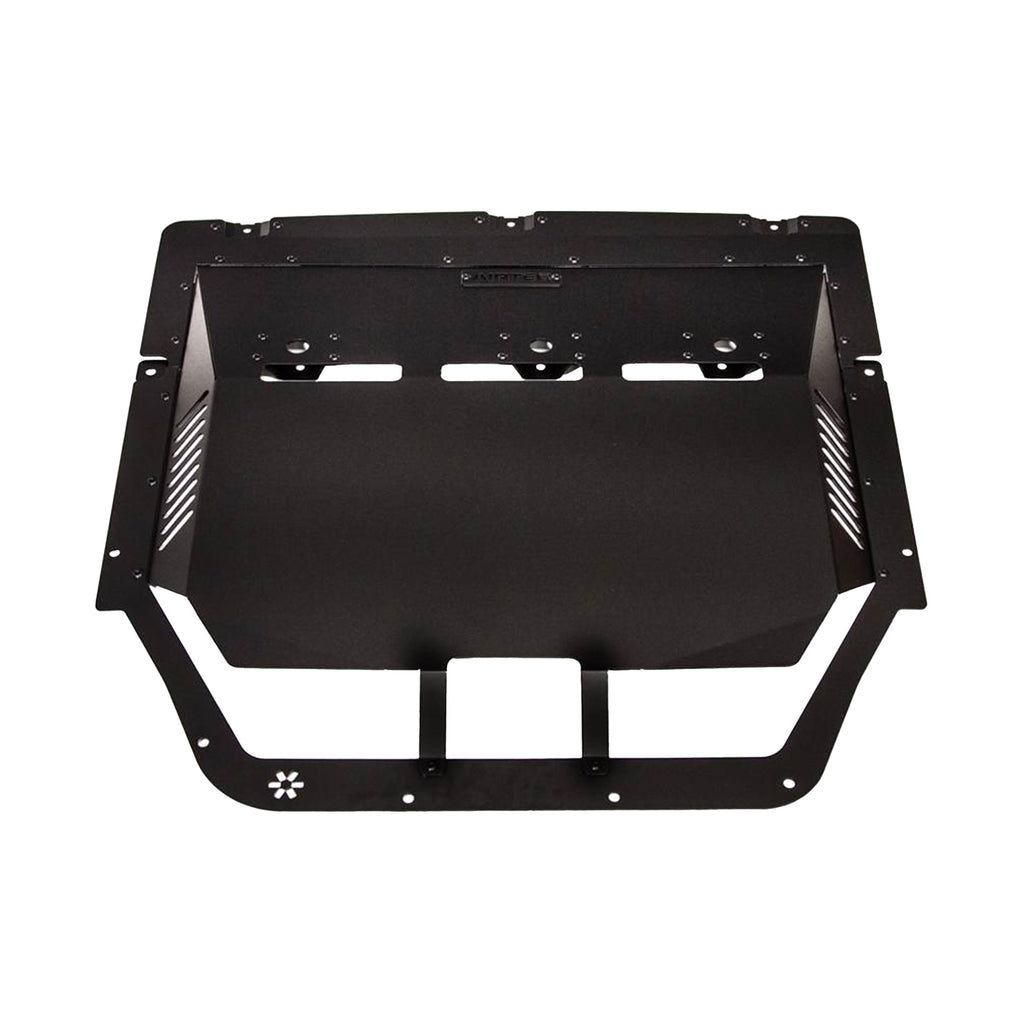

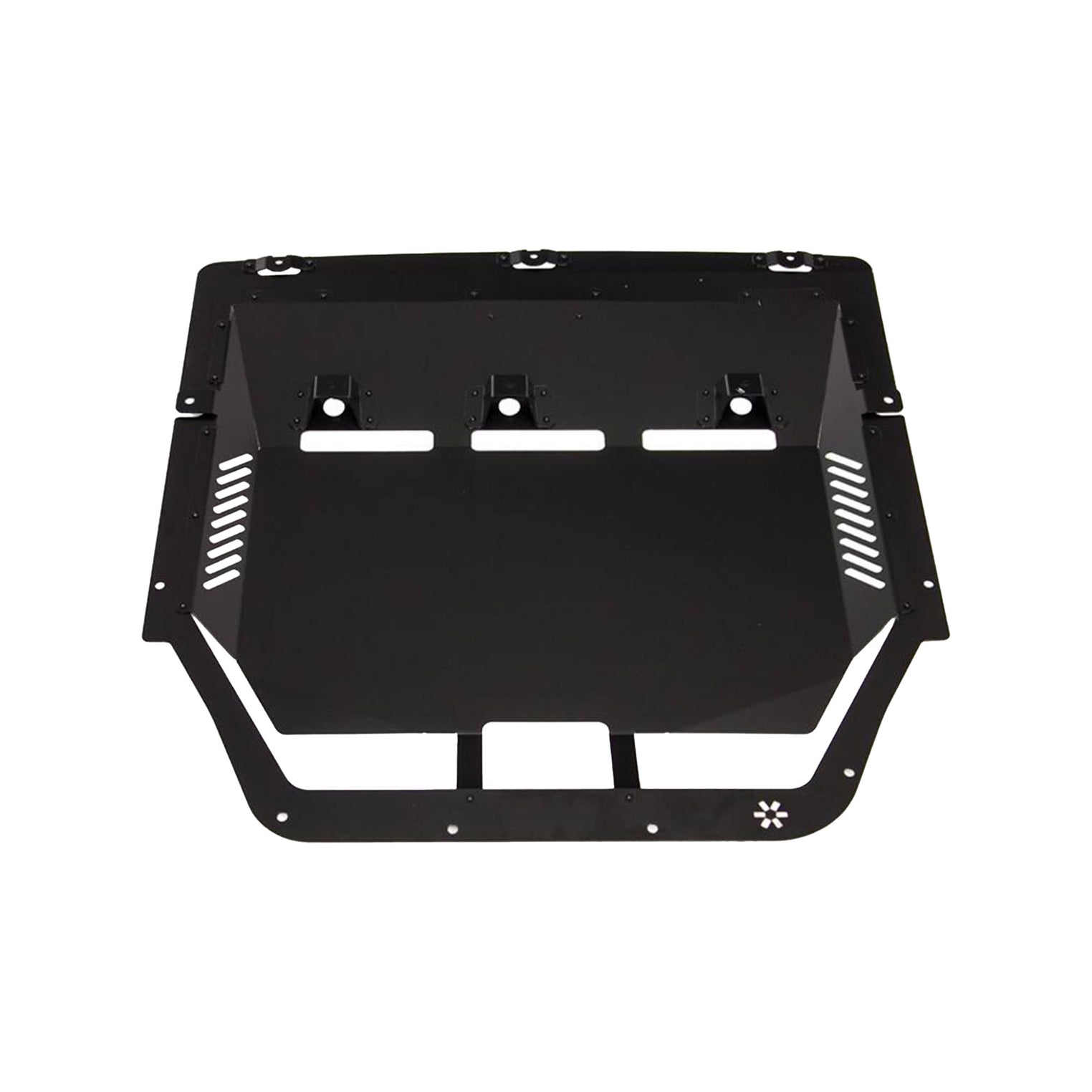

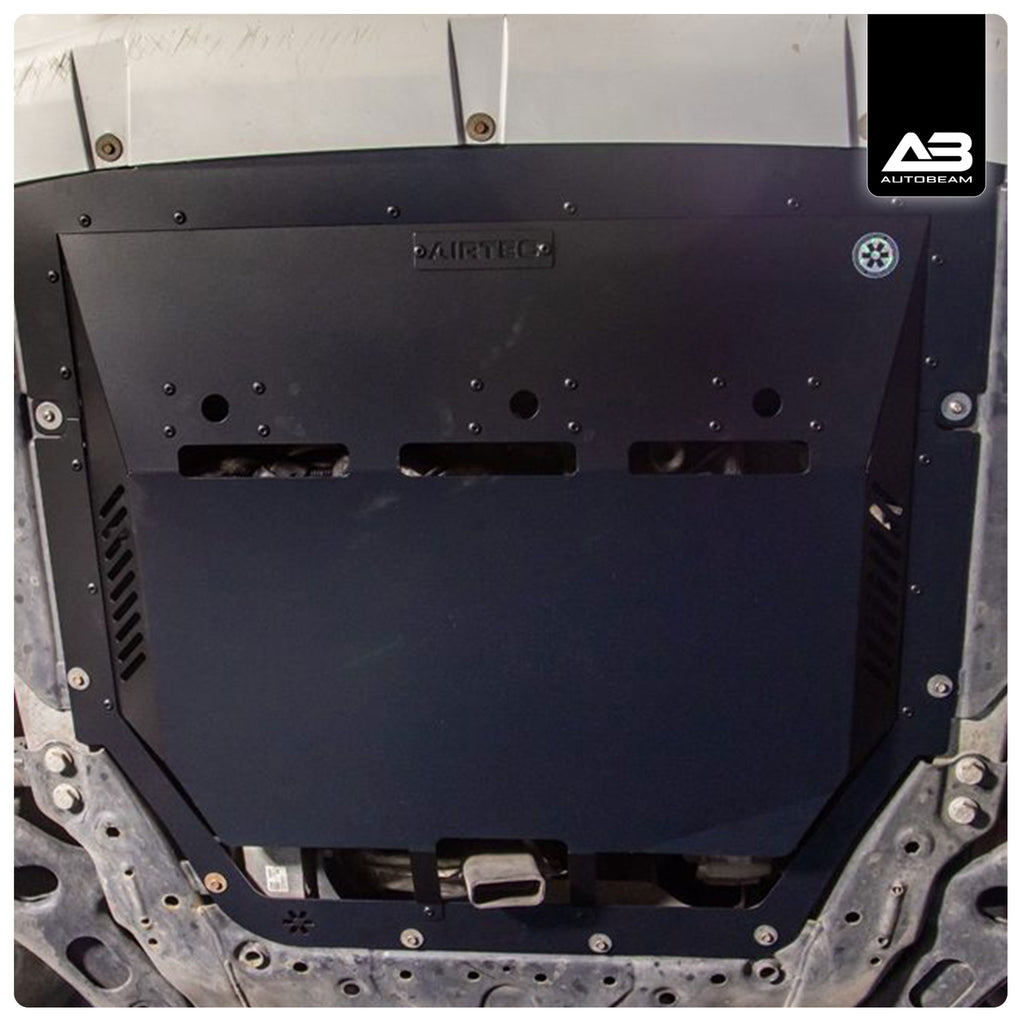

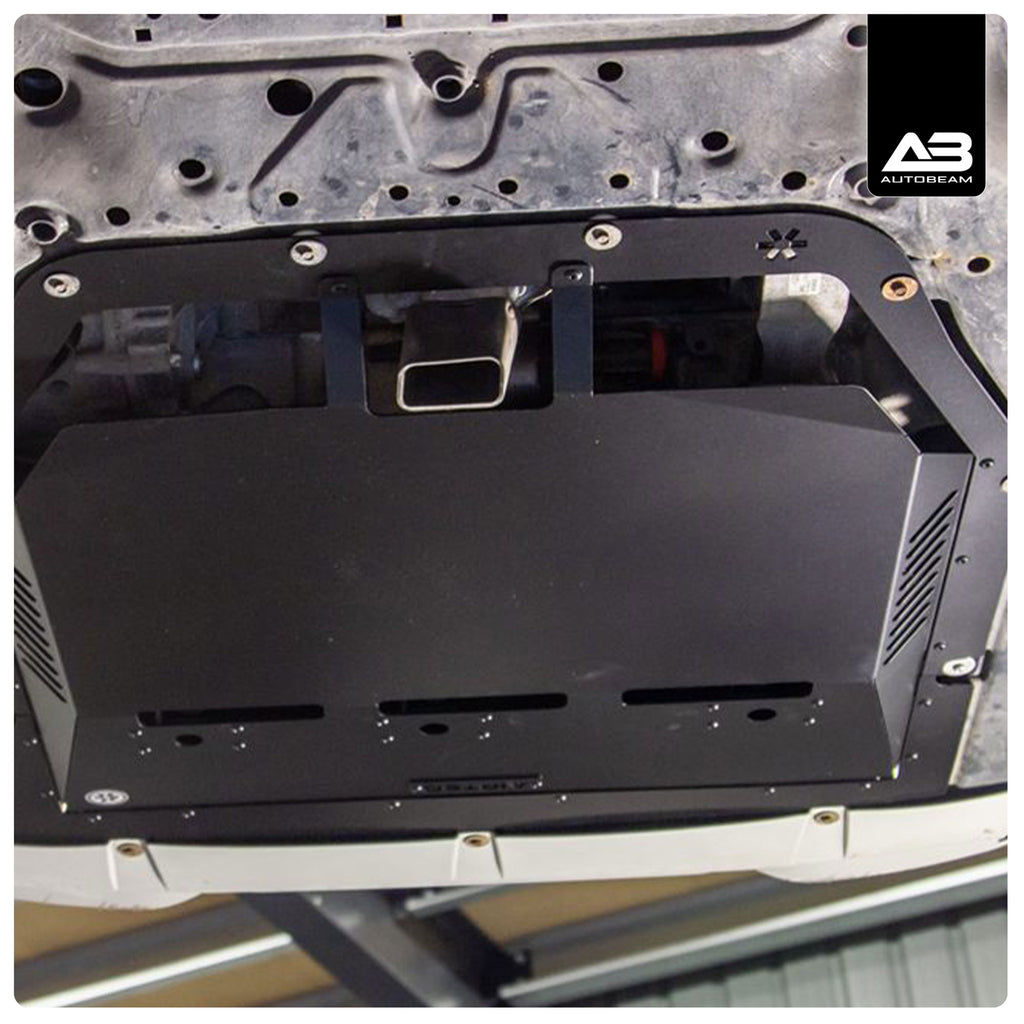

As part of our expanding Mini product range, AIRTEC Motorsport is proud to launch our direct replacement aluminium under tray for the F56.
The original under tray on this car is notoriously weak due to the fibre material construction and as a result are prone to failure over time.
The cooling ducts help pull air from the back of the radiator and down under the engine and into the low-pressure area of the car.
Our solution to creating a direct replacement under tray in 2mm aluminium began with a full 3D scan of the vehicle’s underside to ensure a perfect fitment. As a result, it reuses all original mounting points and fixings whilst offering improved strength and protection for the underside of the car.
During research for this product, we discovered that Mini reduced the size of the under tray on the JCW GP4 model, exposing more of the underside of the engine. This was done to help air flow and cooling, so we opted to use the same principle by introducing a large open rear to the under tray.
This actively helps to pull warm air from the back of the radiator, down under the engine and into the low-pressure area of the car below. This effectively creates an increased flow path within the engine bay to transfer heat out, helping to reduce engine running temperatures.
Finished in a high-quality black powder coat finish, the under tray offers improved strength, durability and cooling effectiveness.
PLEASE NOTE: The under tray uses existing mounting points and bolts, but it is essential the original fittings are in good condition. These should only be reused if they still support the bolt properly and you are able to tighten it firmly. If they are worn or broken and offer little to no resistance as you wind the bolt in, they should be replaced with new items, as failure to do so may cause the under tray to work loose.
What does an under tray do?
The under tray has three main purposes: to protect the underside of the vehicle from foreign objects flicking up and causing damage or accelerated wear. Secondly, to improve aerodynamics by creating a low pressure area as air accelerates past its smooth surface. This reduces drag, which works towards improving grip, handling as well as fuel efficiency.
Lastly, on performance models, the under tray often provides increased cooling by either venting cold air to, or extracting warm air from the engine bay. Therefore improving the strength, design, size and cooling effect can offer fantastic benefits.
- Direct replacement for original Mini F56 under tray
- Created from 3D scan and CAD software for perfect fitment
- Made from high-quality 2mm aluminium for increased strength
- Uses original mounting points – no cutting or drilling required
- Improved cooling due to larger ducting
- Comes in a durable black powder coat finish
Mini F56 (2014-ONWARDS)
